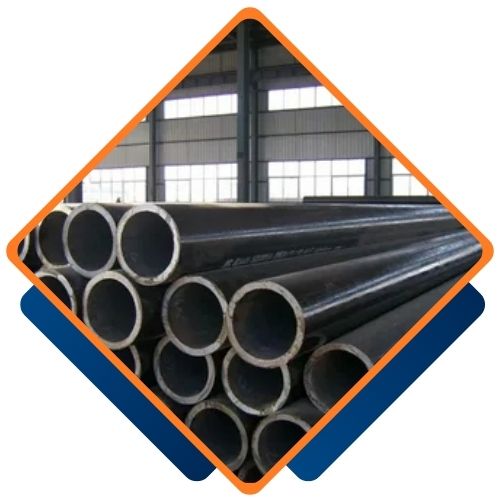

Rithav Pipes and Tubes, based in Delhi, India, has earned a solid reputation as a reliable manufacturer and supplier of high-performance Carbon Steel SAW (Submerged Arc Welded) Pipes. They focus on providing durable and precisely crafted piping solutions that adhere to strict industrial standards. Known for their exceptional weld strength, precise dimensions, and ability to handle high-pressure situations, Rithav’s SAW pipes are a go-to choice. With a strong commitment to quality, cutting-edge manufacturing techniques, and timely delivery, Rithav caters to a variety of industries, including oil & gas, infrastructure, water transport, and power generation, ensuring reliable solutions for both structural and fluid transmission needs.
Carbon Steel SAW Pipes are crafted from carbon steel plates, typically containing carbon levels between 0.16% and 0.30%, along with other elements like manganese, phosphorus, and sulfur. These pipes boast impressive mechanical properties, with tensile strength ranging from 415 to 760 MPa and yield strength between 240 to 485 MPa, depending on the specific grade. The SAW welding technique guarantees deep penetration, consistent welds, and robust strength. Renowned for their toughness and impact resistance, Carbon Steel SAW Pipes can handle high pressure and temperature conditions, making them perfect for demanding industrial applications.
| Standard | : | API 5L, ASME B36.10M-1996, DIN1626, DIN1629, DIN17175, DIN 2448, JIS G3452, JIS G3454, JIS G3455, JIS G3456, JIS G3457, JIS G3461 |
|---|---|---|
| Sizes (Seamless) | : | 1/2” NB – 60” NB |
| Sizes (ERW) | : | 1/2” NB – 24” NB |
| Sizes (SAW) | : | 16” NB – 100” NB |
| Length | : | Fixed: 5.8, 6.0, 11.8, 12.0m, Random length: 5-12m |
| Schedules | : | Schedule S 5, S 10, S 20, S 40, S 60, S XS, S 80, S 100, S 120, S 140, S 160, S XXS |
| Material | : | Q235, Q345, A53B, A106B, API 5L B, X42, X46, X52, X60, X65, ST37.0, ST35.8, St37.2, St35.4/8, St42, St45, St52, St52.4, STP G38, STP G42, STPT42, STB42, STS42, STPT49, STS49 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel SAW Pipe from Rithav Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Rithav Pipes and Tubes is one of the largest Carbon Steel SAW Pipe suppliers in Delhi, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
| Nominal | Pipe size | OD mm | Schedule 20 | Schedule 30 | Schedule STD | Schedule 40 | Schedule 60 | Schedule Extra | Strong (XS) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mm | Inch | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | |
| 3 | 1/8 | 10.3 | 1.73 | 0.37 | 1.73 | 0.357 | 2.41 | 0.47 | ||||||
| 6 | ¼ | 13.7 | 2.24 | 0.63 | 2.24 | 0.625 | 3.02 | 0.804 | ||||||
| 10 | 3/8 | 17.1 | 2.31 | 0.84 | 2.31 | 0.84 | 3.2 | 1.1 | ||||||
| 15 | ½ | 21.3 | 2.77 | 1.26 | 2.77 | 1.26 | 3.73 | 1.62 | ||||||
| 20 | ¾ | 26.7 | 2.87 | 1.69 | 2.87 | 1.68 | 3.91 | 2.2 | ||||||
| 25 | 1 | 33.4 | 3.38 | 2.5 | 3.38 | 2.5 | 4.55 | 3.24 | ||||||
| 32 | 11/4 | 42.2 | 3.56 | 3.39 | 3.56 | 3.38 | 4.85 | 4.47 | ||||||
| 40 | 11/2 | 48.3 | 3.68 | 4.05 | 3.68 | 4.05 | 5.08 | 5.41 | ||||||
| 50 | 2 | 60.3 | 3.9 | 5.44 | 3.9 | 5.44 | 5.5 | 7.48 | ||||||
| 65 | 21/2 | 73 | 5.2 | 8.63 | 5.16 | 8.63 | 7 | 11.41 | ||||||
| 80 | 3/8 | 88.9 | 5.5 | 11.3 | 5.5 | 11.3 | 7.62 | 15.3 | ||||||
| 90 | 31/2 | 1.6 | 5.74 | 13.57 | 5.74 | 13.57 | 8.08 | 18.63 | ||||||
| 100 | 4 | 114.3 | 6.02 | 16.07 | 6.02 | 16.07 | 8.56 | 22.3 | ||||||
| 125 | 5 | 141.3 | 6.6 | 21.77 | 6.55 | 21.77 | 9.53 | 30.9 | ||||||
| 150 | 6 | 168.3 | 7.11 | 28.26 | 7.11 | 28.26 | 10.97 | 42.5 | ||||||
| 200 | 8 | 219.1 | 6.35 | 33.3 | 7 | 36.8 | 8.2 | 42.5 | 8.2 | 42.5 | 10.3 | 53.1 | 12.7 | 64.6 |
| 250 | 10 | 273 | 6.35 | 41.7 | 7.8 | 51.3 | 9.27 | 60.3 | 9.27 | 60.3 | 12.7 | 81.5 | 12.7 | 81.5 |
| 300 | 12 | 323.9 | 6.35 | 49.7 | 8.4 | 65.2 | 9.53 | 73.8 | 10.3 | 79.7 | 14.3 | 109 | 12.7 | 97.4 |
| 350 | 14 | 355.6 | 7.92 | 68.1 | 9.53 | 81.3 | 9.53 | 81.3 | 11.13 | 94.3 | 15.1 | 126.4 | 12.7 | 107 |
| 400 | 16 | 406.4 | 7.92 | 77.9 | 9.5 | 93.3 | 9.53 | 93.3 | 12.7 | 123 | 16.7 | 160 | 12.7 | 123 |
| 450 | 18 | 457.2 | 7.92 | 87.8 | 11.1 | 122 | 9.53 | 105 | 14.3 | 156 | 19 | 206 | 12.7 | 130 |
| 500 | 20 | 508 | 9.53 | 117.2 | 12.7 | 155.1 | 9.53 | 177.2 | 15.1 | 183 | 20.6 | 248 | 12.7 | 155.1 |
| 550 | 22 | 558.8 | 9.53 | 129 | 12.7 | 171 | 9.53 | 129 | 22.2 | 294 | 12.7 | 171 | ||
| 600 | 24 | 609.6 | 9.53 | 141 | 14.3 | 210 | 9.53 | 141 | 17.4 | 255 | 24.5 | 355 | 12.7 | 187 |
Yes, we offer custom sizes for Carbon Steel SAW Pipe to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
These pipes find extensive use in various applications, such as transporting oil and gas, water pipelines, structural piling, and thermal power plants. In the petrochemical and energy sectors, they act as transmission lines for gas, oil, steam, and water. Their resilience against internal pressure and environmental stress makes them suitable for both onshore and offshore operations. Additionally, they are utilized in construction for foundation piling and in irrigation systems. The blend of cost-effectiveness, strength, and reliability makes Carbon Steel SAW Pipes a top choice for long-distance and heavy-duty piping systems.
