Home > Carbon Steel > CDS Tubing

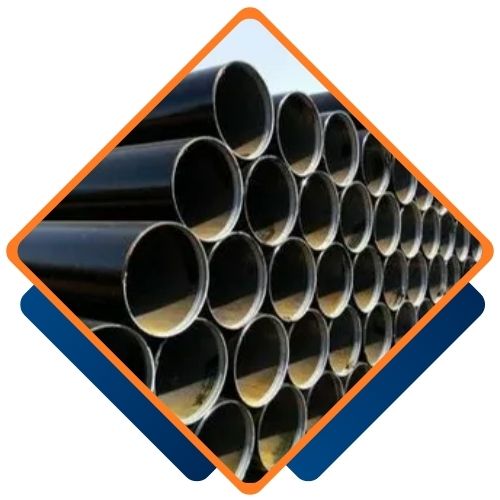

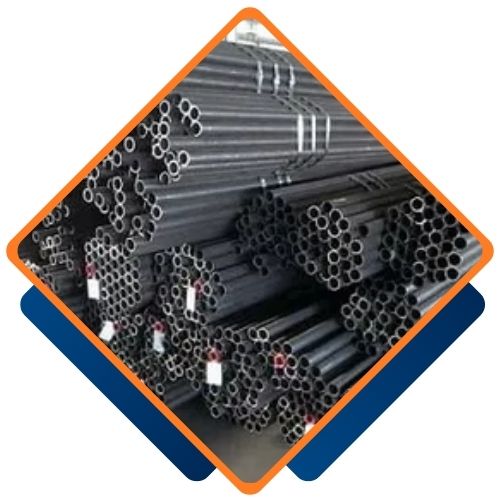

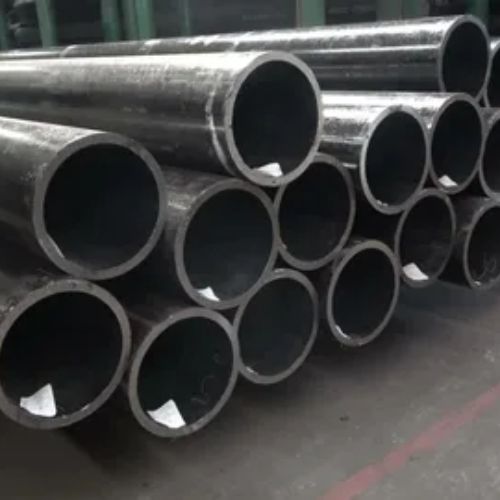

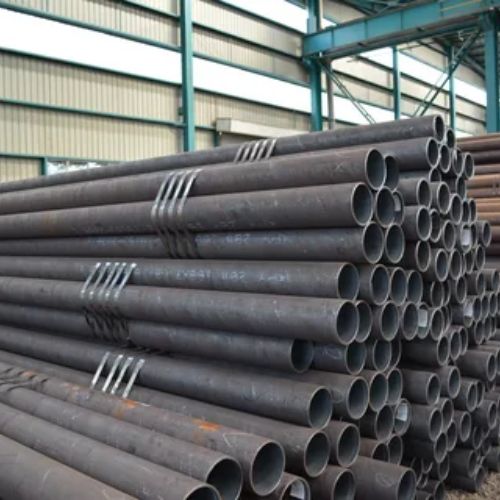

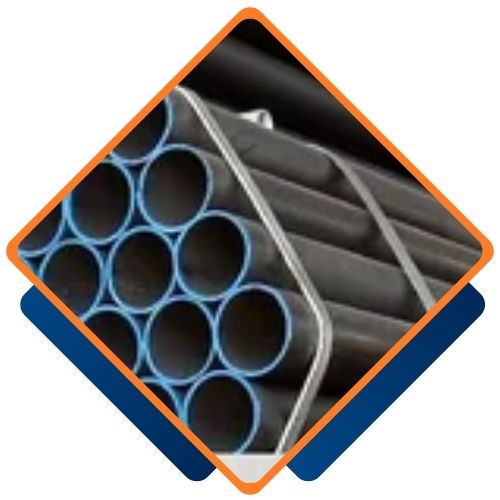

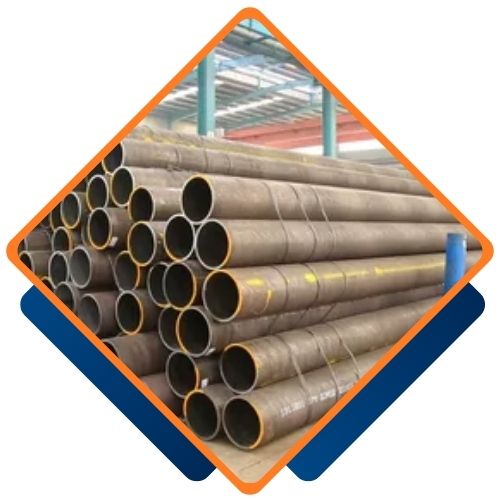

Rithav Pipes and Tubes stands out as a leading manufacturer and supplier of top-notch Cold Drawn Seamless (CDS) Tubing based in Delhi, India. We take pride in crafting precision-engineered CDS tubes that boast remarkable dimensional accuracy, a smooth surface finish, and outstanding mechanical strength. Our cold drawn seamless tubing is produced using cutting-edge processes designed to meet the rigorous demands of critical industrial applications. At Rithav Pipes and Tubes, we are dedicated to delivering reliable, high-performance tubing solutions for various sectors, including automotive, hydraulics, construction, and engineering, both in India and around the world.
Typically, CDS Tubing is crafted from carbon steel, alloy steel, or stainless steel, with compositions that may include elements like carbon (up to 0.35%), manganese (up to 1.65%), silicon, and other trace elements depending on the specific grade (like SAE 1018, ST52, etc.). It offers impressive tensile strength (up to 800 MPa), excellent yield strength (up to 600 MPa), and remarkable elongation properties (≥10%). These tubes are recognized for their uniform grain structure, tight tolerances, and enhanced hardness, making them perfect for high-pressure and load-bearing applications.
| Condition | Nominal Yield Strength psi | Nominal Ultimate Strength psi | Nominal Elongation in 2% | Equivalent Rockwell Hardness | Equivalent Brinell Hardness |
| GRADE 1018 c .15/.20 Mn .60/90 P .40 max S .050 max | |||||
| Hot-Rolled | 35,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | 38,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | 33,000 | 50,000 | 40 | B-57 | 97 |
| As-Drawn | 70,000 | 85,000 | 10 | B-87 | 170 |
| CD-Stress Relief Annealed | 60,000 | 80,000 | 15 | B-85 | 163 |
| GRADE 1020 C. 18/.23 Mn .30/.60 P .040 max S .050 max | |||||
| Hot-Rolled | 38,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | 40,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | 33,000 | 53,000 | 40 | B-62 | 105 |
| As-Drawn | 65,000 | 80,000 | 10 | B-85 | 163 |
| CD-Stress Relief Annealed | 60,000 | 75,000 | 15 | B-81 | 149 |
| GRADE 1026 C .22/.28 Mn .60/.90 P .030 max S .050 max | |||||
| Hot-Rolled | 47,000 | 70,000 | 28 | B-77 | 137 |
| Normalized | 50,000 | 67,000 | 33 | B-74 | 131 |
| Soft-Annealed | 36,000 | 60,000 | 35 | B-68 | 116 |
| As-Drawn | 72,000 | 87,000 | 10 | B-89 | 179 |
| CD-Stress Relief Annealed | 65,000 | 82,000 | 15 | B-86 | 167 |
| OUTSIDE AND INSIDE DIAMETER TOLERANCES FOR ROUND COLD-WORKED SEAMLESS TUBING PER ASTM A519 | ||||||||||
| Outside Diameter Size Range in | Thermal Treatment after Final Cold Work Producing Size | |||||||||
| Wall Thickness as Percent of OD | None, or not exceeding 1100°F. Nominal Temperature | Heated Above 1100°F. Nominal Temperature Without Accelerated Cooling | ||||||||
| OD, in | ID, in | OD, in | ID, in | |||||||
| Over | Under | Over | Under | Over | Under | Over | Under | |||
| Up to 0.499 | All | 0.004 | 0.000 | — | — | 0.005 | 0.002 | — | — | |
| 0.500-1.699 | All | 0.005 | 0.000 | 0.000 | 0.005 | 0.007 | 0.002 | 0.002 | 0.007 | |
| 1.700-2.099 | All | 0.006 | 0.000 | 0.000 | 0.006 | 0.006 | 0.005 | 0.005 | 0.006 | |
| 2.100-2.499 | All | 0.007 | 0.000 | 0.000 | 0.007 | 0.008 | 0.005 | 0.005 | 0.008 | |
| 2.500-2.899 | All | 0.008 | 0.000 | 0.000 | 0.008 | 0.009 | 0.005 | 0.005 | 0.009 | |
| 2.900-3.299 | All | 0.009 | 0.000 | 0.000 | 0.009 | 0.011 | 0.005 | 0.005 | 0.011 | |
| 3.300-3.699 | All | 0.010 | 0.000 | 0.000 | 0.010 | 0.013 | 0.005 | 0.005 | 0.013 | |
| 3.700-4.099 | All | 0.011 | 0.000 | 0.000 | 0.011 | 0.013 | 0.007 | 0.010 | 0.010 | |
| 4.100-4.499 | All | 0.012 | 0.000 | 0.000 | 0.012 | 0.014 | 0.007 | 0.011 | 0.011 | |
| 4.500-4.899 | All | 0.013 | 0.000 | 0.000 | 0.013 | 0.016 | 0.007 | 0.012 | 0.012 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
When you choose CDS Tubing from Rithav Pipes and Tubes, you can count on exceptional quality and long-lasting durability. These tubes offer excellent corrosion resistance and high strength, making them perfect for various industrial applications. Our commitment to outstanding service and reliable delivery guarantees customer satisfaction with every order. With extensive expertise in stainless steel products, we provide premium solutions tailored to meet your unique needs.
Rithav Pipes and Tubes, a top supplier of CDS Tubing in Delhi, India, offers a comprehensive range of high-quality pipes and tubes for various industrial applications. With an extensive inventory and a commitment to exceptional customer service, they have become the go-to source for stainless steel products in the area.
At Rithav Pipes and Tubes, we specialize in providing custom-sized CDS Tubing designed to meet your specific requirements. Our expert team is committed to delivering personalized solutions for all your piping and tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
Cold Drawn Seamless (CDS) Tubing finds extensive use in applications where precision, strength, and surface finish are paramount. It’s commonly utilized in hydraulic and pneumatic systems, automotive components, shock absorbers, cylinders, mechanical and structural engineering, and power transmission. Thanks to its tight dimensional tolerances and high surface quality, CDS tubing is ideal for machining and fabrication. Industries such as aerospace, defense, oil and gas, and heavy equipment manufacturing depend on CDS tubes for their critical applications. Rithav Pipes and Tubes is committed to ensuring a reliable supply and consistent quality of CDS tubing to meet the diverse needs of various industries.
