Home > Copper Nickel > Copper Nickel 90/10 Tubing
Rithav Pipes and Tubes, a well-respected manufacturer and supplier based in Delhi, India, specializes in high-quality Copper Nickel 90/10 Tubing, crafted for exceptional performance in challenging corrosive and marine settings. Renowned for its impressive strength, ductility, and resistance to seawater, this tubing finds its place in various industries, including shipbuilding, desalination, and offshore engineering. Rithav is committed to ensuring that every product adheres to international quality standards, employing precise manufacturing techniques and rigorous testing. With a strong focus on excellence and technical know-how, the company has become a trusted partner for durable Copper Nickel tubing solutions in both domestic and global markets.
Copper Nickel 90/10 Tubing is made up of 90% copper and 10% nickel, with minor additions of iron (1.4%) and manganese (1%) to boost its corrosion resistance and mechanical strength. This alloy is known for its remarkable resistance to seawater corrosion, erosion, and biofouling. It boasts a tensile strength of 300–350 MPa, a yield strength of around 100–150 MPa, and an elongation of 30–35%. With excellent thermal conductivity and outstanding workability, Copper Nickel 90/10 tubing is perfect for bending, welding, and fabrication, making it a top choice for heat exchangers, condensers, and marine piping systems.
Specification : ASTM B466, B467, B111 / ASME SB466, SB467, SB111
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Wall Thickness : Between 0.15mm and 1.50 mm
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Product Property | US Customary |
|---|---|
| Coefficient of Thermal Expansion | 9.5 10−6Per °F (68-572 F) |
| Density | 0.323 lb/in3 at 68 F |
| Electrical Conductivity | 9 %IACS @ 68 F |
| Electrical Resistivity | 115.0 ohms-cmil/ft @ 68 F |
| Melting Point – Liquidus | 2100 F |
| Melting Point – Solidus | 2010 F |
| Modulas of Elasticity in Tension | 18000 ksi |
| Modulus of Rigidity | 6800 ksi |
| Specific Gravity | 8.94 |
| Specific Heat Capacity | 0.09 Btu/lb/°F at 68 F |
| Thermal Conductivity | 26.0 BTU in/hr.ft2.°F @ 68 F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel 90/10 Tubing from Rithav Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel 90/10 Tubing from Rithav Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Outer Diameter) Sizes | Wall Thk. |
|---|---|
| 3/16″, 1″, 1 5/8″, 3/8″, 16″, 7/8″, 5/16″, 1 1/2″, 7/16″, 1/4″, 2″, 5/8″, 1/2″, 3/4″, 1/8″, 1 1/4″, 2 1/4″ | 0.035 |
| 1/8″ , 3/16″ | 0.016 |
| 1/16″, 1/8″, 3/16″ | 0.010 |
| 1/16″, 1/8″, 1/4″ 3/16″, 3/8″, 5/16″ | 0.020 |
| 1/8″ | 0.012 |
| 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/2″, 1 1/4″, 1 5/8″, 1 7/8″, 2″, 2 1/2″, 3″ | 0.083 |
| 1″ | .134 |
| 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/2″, 1 1/4″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ | 0.065 |
| 3 1/2″ | .375 |
| 1/8″, 1/4″ 3/16″, 3/8″, 5/16″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ | 0.028 |
| 3/4″, 1 1/4″, 1″, 1 1/2″, 2″, 3″, 3 1/4″ | .125 |
| 1/2″, 5/8″, 1 1/4″, 1″, 1 1/2″, 2″ | 0.095 |
| 1/2″, 3/4″, 1 1/4″, 1″, 1 1/2″, 2″ | .109 |
| 3″ | .250 |
| 1/2″, 5/8″, 3/4″, 7/8″, 1 1/4″, 1″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ | .120 |
| 1/4″, 3/16″, 3/8″, 5/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/2″, 1 1/4″, 1 5/8″, 2″, 2 1/4″ |
Yes, we offer custom sizes for Copper Nickel 90/10 Tubing to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.

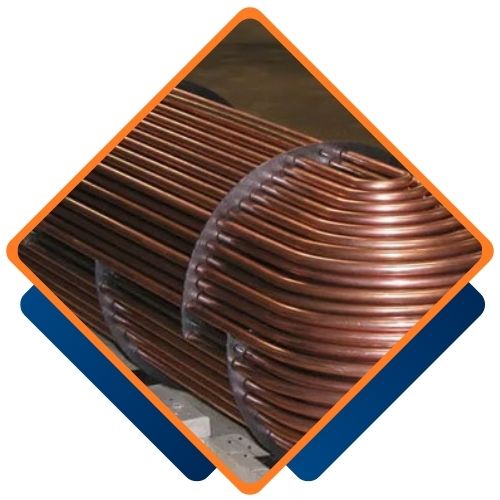

Copper Nickel 90/10 Tubing is widely utilized in marine and offshore sectors, especially in seawater cooling systems, heat exchangers, condensers, and firewater systems, thanks to its exceptional resistance to biofouling, stress corrosion, and erosion. It’s also employed in shipbuilding, desalination facilities, hydraulic lines, and oil refineries where brine and high salinity conditions are prevalent. Its high ductility and excellent thermal conductivity make it ideal for HVAC systems and power plant condensers. The alloy’s ability to maintain its mechanical integrity under varying pressure and temperature ensures a long service life, even in demanding operating conditions.
