Home > Copper Nickel > Copper Nickel Boiler Tubing

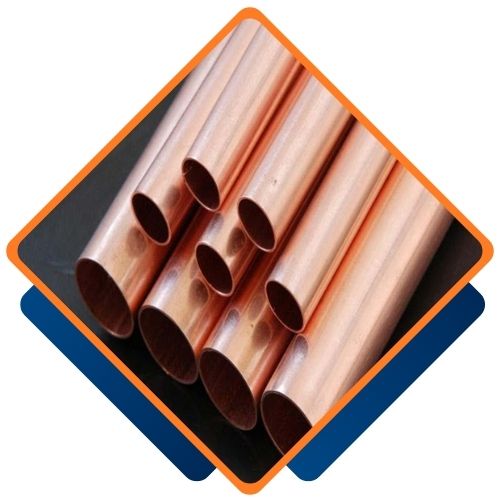

Rithav Pipes and Tubes, a prominent manufacturer and supplier located in Delhi, India, focuses on providing high-performance Copper Nickel Boiler Tubing designed for tough thermal and marine applications. With a strong dedication to quality and precision, Rithav ensures that its tubing meets international standards, offering exceptional corrosion resistance, heat transfer efficiency, and structural integrity. Built to withstand high-pressure and high-temperature conditions, these tubes are perfect for power plants, marine boilers, and heat exchangers. Thanks to Rithav’s expertise and reliable supply chain, it has become a trusted provider of Copper Nickel solutions both domestically and internationally.
Copper Nickel Boiler Tubing generally consists of an alloy made up of Cu (70–90%) and Ni (10–30%), often with small additions of iron and manganese to boost corrosion resistance and mechanical strength. Common grades include 70/30 and 90/10 Copper Nickel. These tubes are known for their outstanding resistance to seawater corrosion, stress corrosion cracking, and biofouling. Their mechanical properties feature a tensile strength ranging from 300–500 MPa, yield strength of 100–150 MPa, and elongation of 30–40%. The material’s excellent thermal conductivity and ductility make it ideal for bending and welding in boiler and heat exchanger systems.
| Boiler Tube Standard | ASTM B552 / ASME SB552 |
| Seamless Boiler Tube Sizes | 1 / 2″ NB – 16″ NB |
| Welded Boiler Tube Sizes | 1 / 2″ NB – 24″ NB |
| Boiler Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Boiler Tubes available Ex-stock |
| Boiler Tube Manufacturing Process | Seamless / Welded / ERW |
| Cupro Nickel Boiler Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Boiler Tube Length | Single Random, Double Random, Standard & Cut length |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Cupro Nickel Boiler Tubes, Finish as per customer Requirements |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Properties | Imperial | Metric |
|---|---|---|
| Yield strength (depending on temper) | 40000-76000 psi | 276-524 MPa |
| Shear modulus | 6380 ksi | 44.0 GPa |
| Tensile strength | 38000-77000 psi | 262-531 MPa |
| Elongation at break (in 50.8 mm) | 46% | 46% |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 17000 ksi | 117 GPa |
| Machinability (UNS C36000 (free-cutting brass) = 100) | 20 | 20 |
| Designation | Chemical Composition % | ||||||||
| Cu | Sn | Al | As | Ni | Fe | Mn | Pb max. | Zn | |
| C70400 | Rem | – | – | – | 4.8-6.2 | 1.3-1.7 | 0.3-0.8 | 0.05 | 1.0max |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Boiler Tubing from Rithav Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Boiler Tubing from Rithav Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
Yes, we offer custom sizes for Copper Nickel Boiler Tubing to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
Copper Nickel Boiler Tubing is extensively utilized in marine, offshore, and thermal power applications due to its remarkable resistance to saltwater corrosion and thermal fatigue. It finds widespread use in marine boiler systems, desalination plants, condensers, heat exchangers, and naval vessels, ensuring long-lasting reliability and minimal maintenance. The alloy’s superior thermal conductivity and anti-fouling properties make it particularly suitable for cooling and heating systems, especially in coastal or humid environments. Its ease of fabrication and resilience under high pressure and temperature conditions further solidify Copper Nickel’s reputation as a go-to choice for various applications.
