Home > Copper Nickel > Copper Nickel Instrumentation Tubing

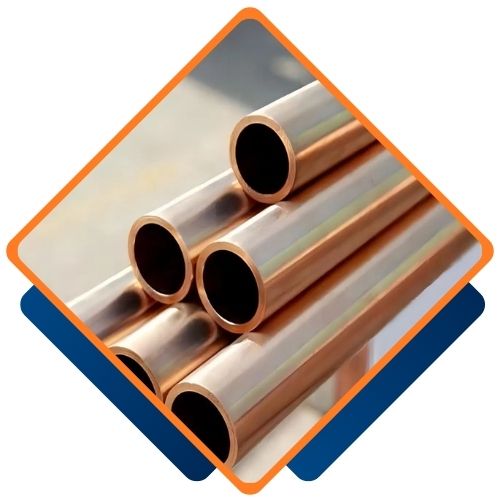

Rithav Pipes and Tubes stands out as a reliable manufacturer and supplier of Copper Nickel Instrumentation Tubing, proudly based in Delhi, India. Known for their remarkable resistance to seawater corrosion, biofouling, and erosion, Copper Nickel alloys are perfect for precision instrumentation and control systems, especially in marine and offshore settings. Our tubing is crafted to meet ASTM B111 and other international standards, featuring smooth bore surfaces, tight dimensional tolerances, and consistent mechanical properties. We cater to various industries, including shipbuilding, desalination, oil and gas, chemical processing, and power generation, all of which require dependable, corrosion-resistant instrumentation lines.
Our Copper Nickel Instrumentation Tubing comes in two popular alloys: 90/10 (C70600) and 70/30 (C71500). The 90/10 alloy consists of 90% copper and 10% nickel, with trace amounts of iron and manganese to boost strength and corrosion resistance. On the other hand, the 70/30 alloy, with 70% copper and 30% nickel, provides enhanced mechanical strength and superior resistance to velocity-induced corrosion. The mechanical properties include tensile strength ranging from 310 to 520 MPa and yield strength between 110 and 240 MPa. Copper Nickel tubing is known for its excellent ductility, formability, and long-lasting stability in challenging marine and processing environments.
Dimensions : DIN, ASTM, ASME, BS and all International Standards
Grade : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Size Range : 1/8” to 2” and 2mm to 32mm tube diameter
Working Pressure : up to 6,000psi (based on severity of application)
Available Thread : NPT(ANSI B1.20.1), and ISO thread configurations (BSPT, BSPP)
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Instrumentation Tubing from Rithav Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Instrumentation Tubing from Rithav Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Instrumentation Tubing to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
Copper nickel Instrumentation tubing is widely used in the marine, offshore and industrial industries due to its excellent corrosion and bio-odor resistance in sea water. It is important in shipbuilding for sea water cooling bilges and ballast system. It operates on hydraulic and pneumatic systems for reliable high-pressure operation in oil and gas facilities. Copper nickel tubing is used in condensers and heat exchangers in power plants. Its stability in extreme temperatures and pressures makes it suitable for desalination plants, chemical processing plants and other corrosive environments.
