Home > Copper Nickel > Copper Nickel Tubing
Rithav Pipes and Tubes stands out as a top-notch manufacturer and supplier of Copper Nickel Tubing, proudly based in Delhi, India. Copper Nickel alloys are celebrated for their remarkable resistance to seawater corrosion, biofouling, and erosion, making them a go-to choice in marine and offshore settings. Our Copper Nickel tubing is crafted to meet ASTM B111, B466, and other international standards, boasting smooth internal surfaces, precise dimensions, and reliable mechanical properties. We cater to various industries, including shipbuilding, desalination, offshore oil and gas, power generation, and heat exchangers, ensuring dependable performance even in the toughest conditions.
Copper Nickel Tubing typically comes in alloys like 90/10 (C70600) and 70/30 (C71500). The 90/10 alloy consists of 90% copper and 10% nickel, with a touch of iron and manganese to enhance strength and corrosion resistance. On the other hand, the 70/30 alloy features 70% copper and 30% nickel, providing greater strength and erosion resistance. Mechanical properties include tensile strength ranging from 310–520 MPa and yield strength between 110–240 MPa. This tubing is known for its excellent ductility, impact resistance, and thermal stability, making it perfect for heat exchangers, condensers, and seawater systems.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Seamless / ERW / Welded / EFW / Fabricated / CDW

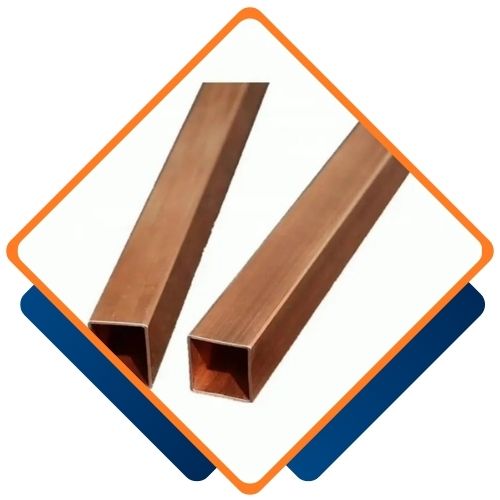

Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90-10 / 70-30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Copper Nickel 90/10 | 2.0872 | C70600 |
| Copper Nickel 70/30 | 2.0882 | C71500 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Tubing from Rithav Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Rithav Pipes and Tubes, one of the largest suppliers of Copper Nickel Tubing in Delhi, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for copper nickel products in the region.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Tubing to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
Copper Nickel Tubing, typically composed of 90% copper and 10% nickel, is widely used in marine, chemical, and industrial applications due to its excellent corrosion resistance, especially in seawater and brackish environments. Its biofouling, pitting, and crevice corrosion resistance makes it ideal for heat exchangers, desalination plants, shipbuilding, and offshore oil platforms. Additionally, copper-nickel tubing is valued for its good thermal conductivity, strength, and durability in high-pressure applications, which makes it suitable for applications where both corrosion resistance and mechanical performance are critical.
