Incoloy Instrumentation Tubing

Home > Incoloy > Incoloy Instrumentation Tubing

Incoloy Instrumentation Tubing Manufacturer, Supplier and Exporter in Delhi, India

Brydon Pipes & Tubes, Delhi, India, is a reliable source of Incoloy Instrumentation Tubing, offering precision tubing solutions for high-performing critical applications. Recognized for superior performance in high-temperature and corrosion-resistant applications, our tubing is well-suited for oil & gas, chemical processing, and power generation industries. We offer tubing of different sizes and specifications, engineered to suit the varied requirements of instrumentation systems and control devices. With unwavering focus on quality, engineering integrity, and customer satisfaction, Brydon provides tubing solutions with long-term reliability, safety, and performance in the most severe operating environments.

Incoloy Instrumentation Tubing Supplier in Delhi, Incoloy Instrumentation Tubing Exporters in India, Incoloy Instrumentation Tubing Manufacturer in Delhi, Incoloy Instrumentation Tubes Price List in Delhi, Incoloy Instrumentation Tubing Suppliers in Delhi, Incoloy Instrumentation Tubing India, Stockist of Incoloy Instrumentation Tubes Delhi, Incoloy Instrumentation Tubing Size Chart

Incoloy Instrumentation Tubing is based mainly of nickel, chromium, and iron, with alloying additions of molybdenum and titanium that optimize performance in aggressive environments. This formulation has good resistance to oxidation, pitting, and high-temperature corrosion. Mechanically, the tubing has high tensile strength, ductility, and fatigue resistance, providing structural integrity under load. Its dimensional stability, along with low maintenance needs and excellent resilience, makes Incoloy tubing ideal for precise fluid and pressure measurement in a broad spectrum of industrial applications.

Incoloy Instrumentation Tubes Specification

ASTM B423 Alloy 825 Tubing Standards	ASTM B423/ ASME SB423, ASTM B705/ ASME SB705 UNS N08825 Tube
ASTM B423 Alloy 825 Instrumentation Tube Size	3.35 mm OD To 101.6 mm OD
ASTM B705 Incoloy 825 Tubing Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Inconel WERKSTOFF NR. 2.4858 Instrumentation Tube wall thickness	0.020″ –0.220″, (special wall thicknesses available)
Inconel UNS N08825 Instrumentation Tubing Length	Single Random, Double Random, Standard & Cut length Tube
Inconel WERKSTOFF NR. 2.4858 Tubing Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Form	‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc
Types of 825 Alloy Tubing	Seamless, ERW, EFW, Welded, Fabricated, Instrumentation Tube / Tubing
825 Alloy Tube End	Plain End, Beveled End, Treaded Tube
Marking	All ASTM B423 Incoloy 825 Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Application & uses of Incoloy 825 Tube	Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube,
Value Added Service	Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in	ASTM B423 Incoloy 825 Capillary Tube & Other Odd Size Inconel NCF 825 Heat Exchanger & Condenser Tube
Test Certificate	Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection

Incoloy Instrumentation Tubing Weight Chart

NPS (DN)	WEIGHT LB/FT (KG/M)	SCH	Outside Diameter IN (Milimeter)	ID	WT IN (Milimeter)
32 (800)	84.085 (126.032)	.0.0.0	32.00 (813)	.0.0.0	0.025 (6.035)
32 (800)	95.028 (141.09)	.0.0.0	32.00 (813)	.0.0.0	0.0281 (7.014)
32 (800)	105.069 (157.025)	10	32.00 (813)	.0.0.0	0.0312 (7.092)
32 (800)	116.041 (173.035)	.0.0.0	32.00 (813)	.0.0.0	0.0344 (8.074)
32 (800)	126.078 (188.083)	.0.0.0	32.00 (813)	STD	0.0375 (9.053)
32 (800)	137.012 (204.009)	.0.0.0	32.00 (813)	.0.0.0	0.0406 (10.031)
32 (800)	147.078 (220.01)	.0.0.0	32.00 (813)	.0.0.0	0.0438 (11.013)
32 (800)	158.008 (235.029)	.0.0.0	32.00 (813)	.0.0.0	0.0469 (11.091)
32 (800)	168.037 (250.065)	20	32.00 (813)	XS	0.05 (12.07)
32 (800)	188.087 (281.009)	.0.0.0	32.00 (813)	.0.0.0	0.0562 (14.027)
32 (800)	209.062 (312.017)	30	32.00 (813)	.0.0.0	0.0625 (15.088)
32 (800)	230.029 (342.094)	40	32.00 (813)	.0.0.0	0.0688 (17.048)
32 (800)	250.055 (373.00)	.0.0.0	32.00 (813)	.0.0.0	0.075 (19.005)
32 (800)	270.072 (402.094)	.0.0.0	32.00 (813)	.0.0.0	0.0812 (20.062)
32 (800)	291.014 (433.052)	.0.0.0	32.00 (813)	.0.0.0	0.0875 (22.023)
32 (800)	311.047 (463.078)	.0.0.0	32.00 (813)	.0.0.0	0.0938 (23.083)
32 (800)	331.039 (493.035)	.0.0.0	32.00 (813)	.0.0.0	1.00 (25.04)
32 (800)	351.023 (522.08)	.0.0.0	32.00 (813)	.0.0.0	1.0062 (26.097)
32 (800)	371.031 (552.088)	.0.0.0	32.00 (813)	.0.0.0	1.0125 (28.058)
32 (800)	391.03 (582.064)	.0.0.0	32.00 (813)	.0.0.0	1.0188 (30.018)
32 (800)	410.09 (611.072)	.0.0.0	32.00 (813)	.0.0.0	1.025 (31.075)
34 (850)	90.02 (134.031)	.0.0.0	34.00 (864)	.0.0.0	0.025 (6.035)
34 (850)	101.029 (150.088)	.0.0.0	34.00 (864)	.0.0.0	0.0281 (7.014)
34 (850)	112.036 (167.021)	10	34.00 (864)	.0.0.0	0.0312 (7.092)
34 (850)	123.077 (184.034)	.0.0.0	34.00 (864)	.0.0.0	0.0344 (8.074)
34 (850)	134.079 (200.082)	.0.0.0	34.00 (864)	STD	0.0375 (9.053)
34 (850)	145.08 (217.006)	.0.0.0	34.00 (864)	.0.0.0	0.0406 (10.031)
34 (850)	157.014 (234.01)	.0.0.0	34.00 (864)	.0.0.0	0.0438 (11.013)
34 (850)	168.011 (250.027)	.0.0.0	34.00 (864)	.0.0.0	0.0469 (11.091)
34 (850)	179.006 (266.063)	20	34.00 (864)	XS	0.05 (12.07)
34 (850)	200.089 (299.004)	.0.0.0	34.00 (864)	.0.0.0	0.0562 (14.027)
34 (850)	222.099 (332.014)	30	34.00 (864)	.0.0.0	0.0625 (15.088)
34 (850)	245.00 (364.092)	40	34.00 (864)	.0.0.0	0.0688 (17.048)
34 (850)	266.058 (396.096)	.0.0.0	34.00 (864)	.0.0.0	0.075 (19.005)
34 (850)	288.008 (428.088)	.0.0.0	34.00 (864)	.0.0.0	0.0812 (20.062)
34 (850)	309.084 (461.048)	.0.0.0	34.00 (864)	.0.0.0	0.0875 (22.023)
34 (850)	331.052 (493.075)	.0.0.0	34.00 (864)	.0.0.0	0.0938 (23.083)
34 (850)	352.077 (525.03)	.0.0.0	34.00 (864)	.0.0.0	1.00 (25.04)
34 (850)	373.094 (556.073)	.0.0.0	34.00 (864)	.0.0.0	1.0062 (26.097)
34 (850)	395.036 (588.083)	.0.0.0	34.00 (864)	.0.0.0	1.0125 (28.058)
34 (850)	416.07 (620.06)	.0.0.0	34.00 (864)	.0.0.0	1.0188 (30.018)
34 (850)	437.062 (651.065)	.0.0.0	34.00 (864)	.0.0.0	1.025 (31.075)
36 (900)	95.054 (142.014)	.0.0.0	36.00 (914)	.0.0.0	0.025 (6.035)
36 (900)	107.03 (159.068)	.0.0.0	36.00 (914)	.0.0.0	0.0281 (7.014)
36 (900)	119.003 (176.097)	10	36.00 (914)	.0.0.0	0.0312 (7.092)
36 (900)	131.012 (195.012)	.0.0.0	36.00 (914)	.0.0.0	0.0344 (8.074)
36 (900)	142.081 (212.057)	.0.0.0	36.00 (914)	STD	0.0375 (9.053)
36 (900)	154.048 (229.077)	.0.0.0	36.00 (914)	.0.0.0	0.0406 (10.031)
36 (900)	166.051 (247.082)	.0.0.0	36.00 (914)	.0.0.0	0.0438 (11.013)
36 (900)	178.014 (264.096)	.0.0.0	36.00 (914)	.0.0.0	0.0469 (11.091)
36 (900)	189.075 (282.029)	20	36.00 (914)	XS	0.05 (12.07)
36 (900)	212.09 (316.063)	.0.0.0	36.00 (914)	.0.0.0	0.0562 (14.027)
36 (900)	236.035 (351.073)	30	36.00 (914)	.0.0.0	0.0625 (15.088)
36 (900)	259.071 (386.047)	.0.0.0	36.00 (914)	.0.0.0	0.0688 (17.048)
36 (900)	282.062 (420.045)	40	36.00 (914)	.0.0.0	0.075 (19.005)
36 (900)	305.044 (454.03)	.0.0.0	36.00 (914)	.0.0.0	0.0812 (20.062)
36 (900)	328.055 (488.089)	.0.0.0	36.00 (914)	.0.0.0	0.0875 (22.023)
36 (900)	351.057 (523.014)	.0.0.0	36.00 (914)	.0.0.0	0.0938 (23.083)
36 (900)	374.015 (556.062)	.0.0.0	36.00 (914)	.0.0.0	1.00 (25.04)
36 (900)	396.064 (589.098)	.0.0.0	36.00 (914)	.0.0.0	1.0062 (26.097)
36 (900)	419.042 (624.007)	.0.0.0	36.00 (914)	.0.0.0	1.0125 (28.058)
36 (900)	442.01 (657.081)	.0.0.0	36.00 (914)	.0.0.0	1.0188 (30.018)
36 (900)	464.035 (690.08)	.0.0.0	36.00 (914)	.0.0.0	1.025 (31.075)
38 (950)	125.07 (186.094)	.0.0.0	38.00 (965)	.0.0.0	0.0312 (7.092)
38 (950)	138.047 (206.011)	.0.0.0	38.00 (965)	.0.0.0	0.0344 (8.074)
38 (950)	150.083 (224.056)	.0.0.0	38.00 (965)	STD	0.0375 (9.053)
38 (950)	163.016 (242.074)	.0.0.0	38.00 (965)	.0.0.0	0.0406 (10.031)
38 (950)	175.087 (261.082)	.0.0.0	38.00 (965)	.0.0.0	0.0438 (11.013)
38 (950)	188.017 (279.094)	.0.0.0	38.00 (965)	.0.0.0	0.0469 (11.091)
38 (950)	200.044 (298.026)	.0.0.0	38.00 (965)	XS	0.05 (12.07)
38 (950)	224.092 (334.058)	.0.0.0	38.00 (965)	.0.0.0	0.0562 (14.027)
38 (950)	249.071 (371.07)	.0.0.0	38.00 (965)	.0.0.0	0.0625 (15.088)
38 (950)	274.042 (408.046)	.0.0.0	38.00 (965)	.0.0.0	0.0688 (17.048)
38 (950)	298.065 (444.041)	.0.0.0	38.00 (965)	.0.0.0	0.075 (19.005)
38 (950)	322.08 (480.024)	.0.0.0	38.00 (965)	.0.0.0	0.0812 (20.062)
38 (950)	347.026 (516.085)	.0.0.0	38.00 (965)	.0.0.0	0.0875 (22.023)
38 (950)	371.063 (553.011)	.0.0.0	38.00 (965)	.0.0.0	0.0938 (23.083)
38 (950)	395.053 (588.057)	.0.0.0	38.00 (965)	.0.0.0	1.00 (25.04)
38 (950)	419.035 (623.09)	.0.0.0	38.00 (965)	.0.0.0	1.0062 (26.097)
38 (950)	443.047 (660.001)	.0.0.0	38.00 (965)	.0.0.0	1.0125 (28.058)
38 (950)	467.05 (695.077)	.0.0.0	38.00 (965)	.0.0.0	1.0188 (30.018)
38 (950)	491.007 (730.074)	.0.0.0	38.00 (965)	.0.0.0	1.025 (31.075)

Incoloy Instrumentation Tubing Chemical Composition

Element	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Incoloy Instrumentation Tubing Exporter India, Incoloy Instrumentation Tubing Price List in Delhi, Instrumentation Incoloy Tubes Supplier in India, Incoloy Instrumentation Tubing Exporter in Delhi, Incoloy Instrumentation Tubing Exporter Delhi, Instrumentation Incoloy Tubing Price in India, Incoloy Instrumentation Tubing Weight Chart, Incoloy Instrumentation Tubing Thickness, Austenitic Instrumentation Incoloy Tube Suppliers in Delhi, Incoloy Instrumentation Tubing Distributor

Why Choose Incoloy Instrumentation From Rithav Pipes and Tubes?

Choosing Incoloy Instrumentation Tubes from Rithav Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Incoloy Instrumentation Tubing Supplier in Delhi, India

Rithav Pipes and Tubes, one of the largest suppliers of Incoloy Instrumentation Tubing in the Delhis, India. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.

Incoloy Instrumentation Tubing Exporter in India, Alloy Instrumentation Tubing Exporters in Delhi, Incoloy Instrumentation Tubing Supplier in India, Incoloy Instrumentation Tubing Manufacturers in Delhi, Austenitic Incoloy Instrumentation Tubing Dealer in Delhi, Incoloy Instrumentation Tubing Suppliers in Dealer in Delhi, Incoloy Instrumentation Tubing Exporters India

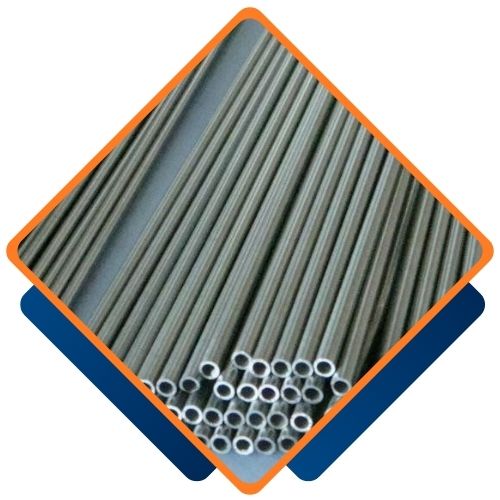

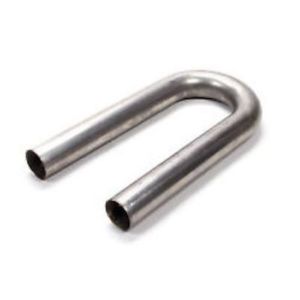

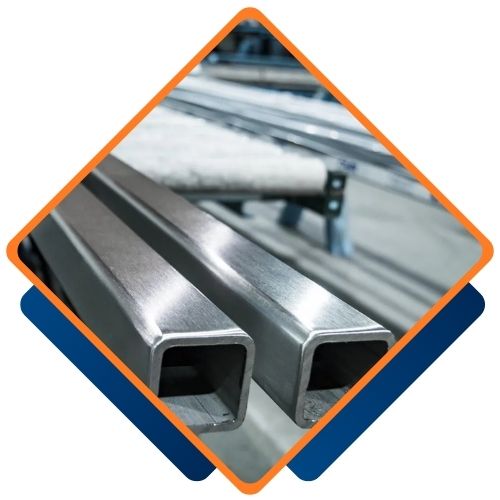

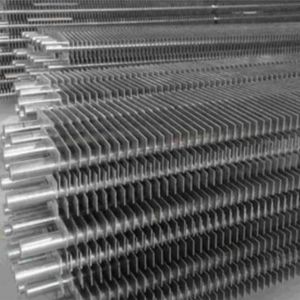

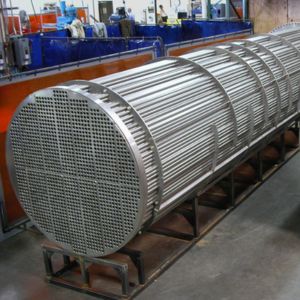

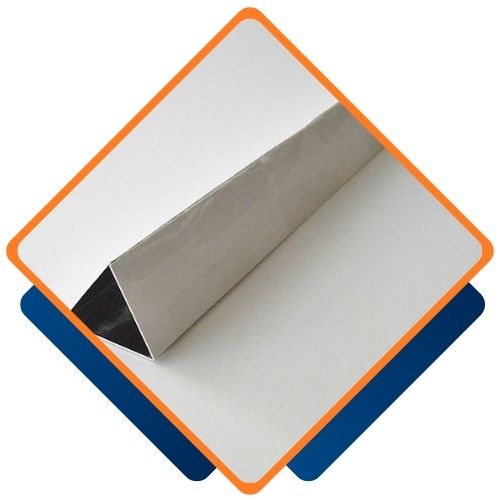

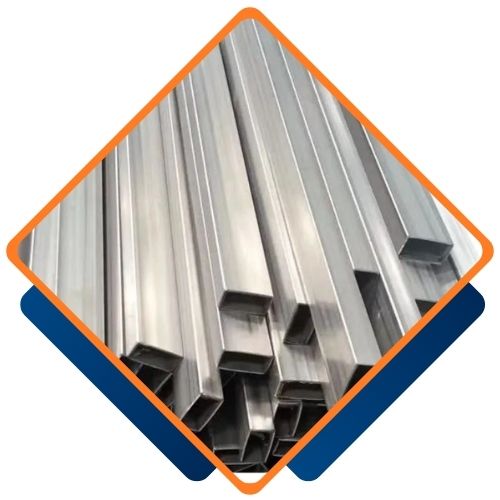

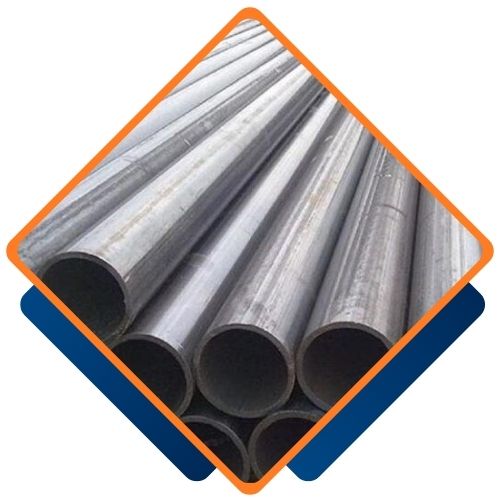

Types of Incoloy Instrumentation Tubing

Incoloy Tubing Instrumentation Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Are Custom Sizes Available for Incoloy Instrumentation Tubes?

Yes, we provide custom sizes for Incoloy Instrumentation Tubes to meet your specific requirements. At Rithav Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@rithavpipesandtubes.co.in.

Incoloy Instrumentation Tubing Supplier in Delhi, Incoloy Instrumentation Tubing Exporter in Delhi,Incoloy Instrumentation Tubing Manufacturer in Delhi, Instrumentation Incoloy Tubes Suppliers in Delhi, Incoloy Instrumentation Tubing Exporter India, Price of Instrumentation Incoloy Tube Delhi, Incoloy Instrumentation Tubes Size in mm

Incoloy Instrumentation Tubing finds broad application in industries where precision, durability, and resistance to harsh conditions are critical. In the oil and gas industry, it is applied to downhole control lines, pressure transmission systems, and instrumentation panels, where corrosive media and high pressures are typical. In chemical processing, the tubing provides precise delivery and measurement of reactive fluids. It finds applications in power generation, especially in boiler instrumentation, steam control systems, and temperature regulation circuits. Its superior stress corrosion cracking and thermal cycling resistance renders it the best fit for mission-critical instrumentation use.
