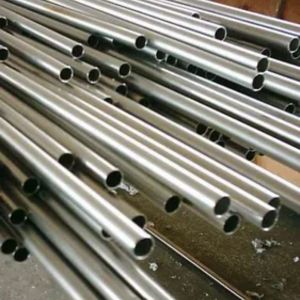

Rithav Pipes and Tubes is a well-respected manufacturer and supplier of Monel Welded Tubing, proudly based in Delhi, India. Monel alloys, which are nickel-copper materials, are famous for their exceptional resistance to corrosion, especially in seawater, acids, and alkaline environments. Our Monel welded tubing is produced in accordance with ASTM B730 and other relevant standards, ensuring outstanding weld integrity, smooth internal surfaces, and reliable mechanical performance across a wide temperature range. We supply Monel welded tubing to various industries, including marine, chemical processing, oil and gas, heat exchangers, and power generation, all of which demand dependable corrosion resistance and durability in tough conditions.
Monel Welded Tubing is mainly available in Monel 400 and Monel K500 grades. Monel 400 consists of about 63% nickel and 30–34% copper, along with trace amounts of iron, manganese, and silicon to boost strength. Monel K500 incorporates aluminum and titanium for precipitation hardening. The mechanical properties include a tensile strength of 480–760 MPa and a yield strength ranging from 170–550 MPa, depending on the grade and heat treatment. Monel tubing showcases excellent ductility, toughness, and resistance to stress corrosion cracking in marine and chemical environments, while maintaining stability from cryogenic temperatures up to 550 °C.
Monel Welded Tubes : ASTM B725 , ASME SB725 / ASTM B730, ASME SB730
Tube Size : 4 to 219mm W. T.: 0.5 to 20mm
Schedule : SSCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated Pipes

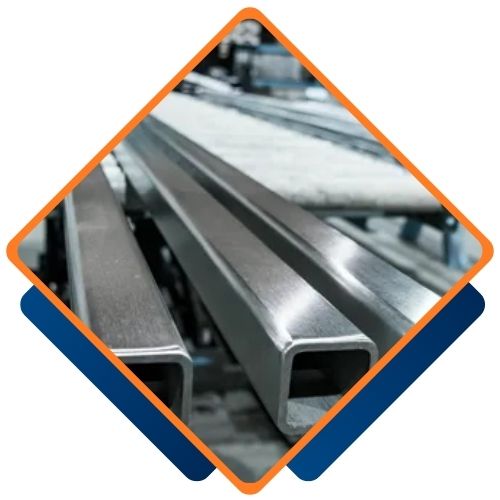

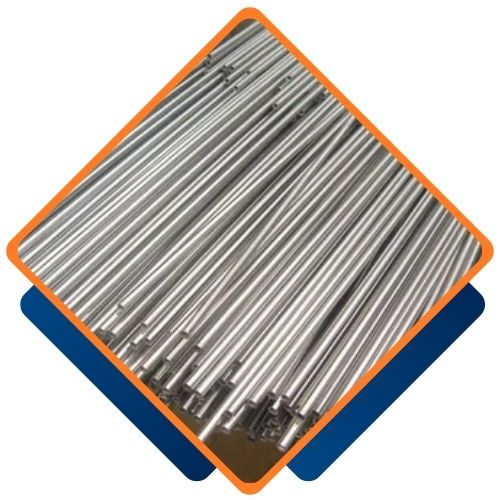

Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
| 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Welded Tubing from Rithav Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our tubing is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Rithav Pipes and Tubes, one of the largest suppliers of Monel Welded Tubing in Delhi, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us the go-to choice for Monel products in the region.
Yes, we offer custom sizes for Monel Welded Tubing to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
Monel welded tubing is widely used in various industries due to its high corrosion resistance and strength. Common applications include marine environments, chemical processing, and oil and gas industries, where exposure to harsh chemicals and extreme temperatures is prevalent. It’s also utilized in aerospace components, heat exchangers, and pressure vessels. The material’s resistance to seawater and other corrosive substances makes it ideal for piping systems, valves, and fittings in marine applications. Additionally, Monel tubing is favoured in industries requiring reliable performance under severe conditions.
