Home > Stainless Steel >Stainless Steel 304 EFW pipes

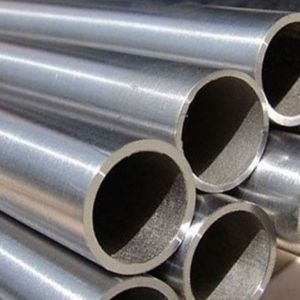

Rithav Pipes and Tubes stands out as a reliable manufacturer and supplier of Stainless Steel 304 EFW Pipes right here in Delhi, India. We take pride in delivering top-notch welded pipes that cater to a variety of industrial needs. SS 304 is an austenitic stainless steel celebrated for its remarkable corrosion resistance, excellent weldability, and impressive mechanical properties. Our Electric Fusion Welded (EFW) pipes are crafted with precision and adhere to international standards like ASTM A312 and A778. With their outstanding durability and sleek finish, our Stainless Steel 304 EFW Pipes are perfect for applications in chemical processing, the food industry, architecture, and structural projects.
When it comes to composition and mechanical properties, our Stainless Steel 304 EFW Pipes boast a blend of Chromium (18–20%) and Nickel (8–10.5%), along with a Carbon content of up to 0.08%. This combination ensures exceptional corrosion resistance and strength. We also include controlled amounts of Manganese, Silicon, Phosphorus, and Sulfur. These pipes deliver a minimum tensile strength of 75,000 psi and a yield strength of 30,000 psi, showcasing good ductility and toughness. Thanks to the EFW manufacturing process, we guarantee high dimensional accuracy and robust weld integrity. At Rithav Pipes and Tubes, we ensure that all our pipes meet ASTM A312/A778 standards and undergo thorough quality testing.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 304 | min. | – | 8.0 | – | – | – | – | – | 18.0 | – |
| max. | 0.08 | 10.5 | 0.75 | 0.10 | 0.030 | 2.0 | 0.045 | 20.0 | ||
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 304 | 515 | 40 | 205 | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304 EFW Pipes from Rithav Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304 | 8000 | 500 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 720 |
We offer custom sizes for Stainless Steel 304 EFW Pipes to meet your specific needs. Our dedicated team at Rithav Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@rithavpipesandtubes.co.in.
Our Stainless Steel 304 EFW Pipes are incredibly versatile, finding applications in food processing, pharmaceuticals, chemical industries, architectural structures, and water treatment facilities. Their superior corrosion resistance and hygienic properties make them ideal for sanitary applications and pipelines that transport potable water and chemicals. Additionally, SS 304 pipes are commonly used in automotive exhaust systems, heat exchangers, and structural frameworks. The strong welds and precise dimensions of our EFW pipes make them perfect for complex piping systems, ensuring reliable performance, longevity, and easy maintenance across a wide range of applications.
