Home > Stainless Steel >Stainless Steel 304H EFW pipes

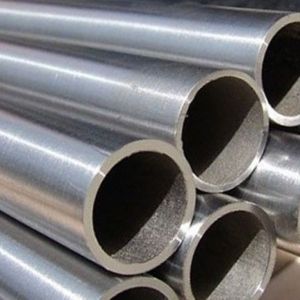

Rithav Pipes and Tubes stands out as a leading manufacturer and supplier of Stainless Steel 304H EFW Pipes in Delhi, India, providing robust welded piping solutions designed for high-temperature applications. SS 304H is essentially a high-carbon variant of the widely-used 304 stainless steel grade, known for its enhanced heat resistance and mechanical strength. Our Electric Fusion Welded (EFW) pipes are crafted according to ASTM A312 standards, guaranteeing top-notch weld quality, precise dimensions, and excellent corrosion resistance. Rithav’s 304H EFW pipes find their place in power plants, refineries, boilers, and other high-temperature settings where durability and performance are paramount.
When it comes to composition and mechanical properties, our Stainless Steel 304H EFW Pipes boast a blend of Chromium (18–20%) and Nickel (8–11%), along with a higher Carbon content (0.04–0.10%) than standard 304, which boosts creep strength and high-temperature performance. The pipes also contain controlled amounts of Manganese, Silicon, Phosphorus, and Sulfur. With a tensile strength of 75,000 psi and a yield strength of 30,000 psi, they offer remarkable ductility and weldability. Each EFW pipe is produced under ASTM A312 standards, ensuring rigorous inspection and testing for consistent mechanical performance and resistance to thermal fatigue.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 304H | S30409 | 1.4948 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 304H | 515 | 205 | 40 | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 304H EFW Pipes from Rithav Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304H | 8000 | 500 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 720 |
We offer custom sizes for Stainless Steel 304H EFW Pipes to meet your specific needs. Our dedicated team at Rithav Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@rithavpipesandtubes.co.in.
Rithav Pipes and Tubes’ Stainless Steel 304H EFW Pipes are widely utilized in high-temperature and pressure applications. They’re perfect for boilers, heat exchangers, superheaters, petrochemical systems, and power generation plants. Thanks to their high carbon content, these pipes excel in elevated temperature services where strength and structural integrity are crucial. You’ll also find them in refinery piping, pressure vessels, and steam pipelines. Their outstanding weldability, oxidation resistance, and ability to maintain mechanical properties at high temperatures make them a reliable choice for demanding applications.
