Home > Stainless Steel Tubing > Stainless Steel 309H Tubing

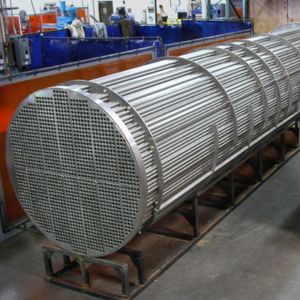

Rithav Pipes and Tubes stands out as a top manufacturer and supplier in India, specializing in high-quality Stainless Steel 309H Tubing, designed to excel in high-temperature and corrosive industrial settings. The 309H variant is a high-carbon form of 309 stainless steel, which boosts its creep resistance and mechanical strength when the heat is on. This tubing is perfect for use in heat exchangers, boilers, furnaces, and thermal processing equipment. With its impressive resistance to oxidation and sulfidation, 309H tubing can handle continuous service temperatures of up to 1000°C (1832°F). Rithav offers this tubing in seamless, welded, and custom-fabricated options, all adhering to ASTM A213 / A269 standards.
When it comes to composition and mechanical properties, Stainless Steel 309H Tubing is made up of about 22–24% chromium, 12–15% nickel, and a higher carbon content (around 0.04–0.10%) to enhance its strength at high temperatures. This alloy also contains trace amounts of manganese, silicon, and phosphorus. Notable mechanical properties include a tensile strength of at least 550 MPa, yield strength of at least 205 MPa, and an elongation of at least 35%. The tubing boasts excellent thermal stability, oxidation resistance, and mechanical integrity in high-heat and mildly corrosive environments. Its elevated carbon content significantly improves creep strength, making it a great fit for pressure-retaining components under thermal stress.
| Standard | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V |
| Dimensions | ASTM, ASME and API |
| Size | 1/8″NB TO 30″NB IN |
| 309H Pipes & Tubes | 6NB to 1200NB IN |
| 309H Tubing Range | 1/2″ OD – 12″ OD , Guage: 25 SWG – 10 SWG |
| ERW Pipes & Tubes | 1/2″ NB – 24″ NB |
| EFW Pipes & Tubes | 6″ NB – 100″ NB |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Pipes & Tubes | 1/2″ NB – 16″ NB |
| Specialized in | Large Diameter Size |
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |

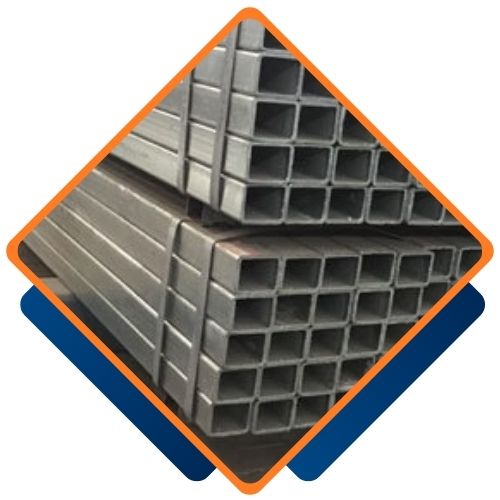

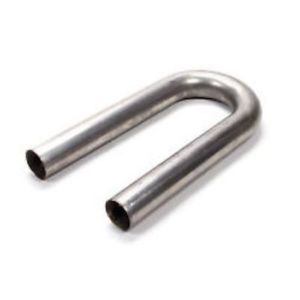

| Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded |
| Element | SS 309H |
| Ni | 12.0 – 15.0 |
| C | 0.04 – 0.10 |
| Mn | 2.0 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 0.75 max |
| Cr | 22.0 – 24.0 |
| Element | SS 309H |
| Density lbm/in3 | 7890 |
| Melting Point | 1480 – 1530(°C) / 2500 – 2590 (°F) |
| Tensile Strength | 515 |
| Yield Strength (0.2%Offset) | 205 |
| Elongation | 40% |
| Elongation(Brinell) | 217 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 309H Tubing from Rithav Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Rithav Pipes and Tubes, one of the largest suppliers of Stainless Steel 309H Tubing in Delhi, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel 309H Tubing to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in

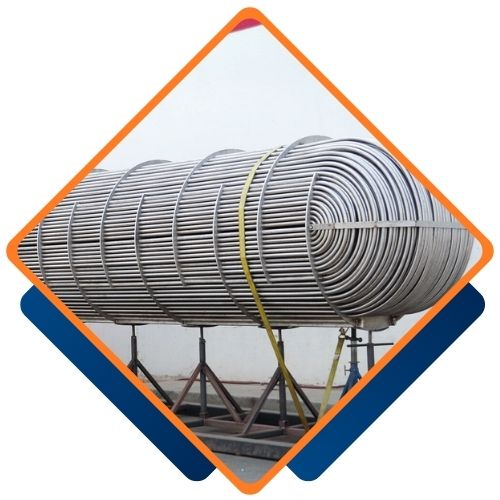

Stainless Steel 309H Tubing finds its place in various applications, including power generation plants, petrochemical refineries, thermal oxidizers, and industrial furnaces. It’s particularly well-suited for components like radiant tubes, boiler tubes, heat exchangers, and exhaust manifolds, where high temperatures and corrosive gases are a regular occurrence. The 309H is especially effective in high-pressure steam systems and welded assemblies that need to maintain structural integrity in heat-intensive environments. Its strong resistance to oxidation, scaling, and sulfidation makes it a top choice for refinery heaters and chemical processing applications.
