Home > Stainless Steel > Stainless Steel 316 and 316L Welded Tubing
Rithav Pipes and Tubes stands out as a top manufacturer and supplier of Stainless Steel 316H Welded Pipes, proudly based in Delhi, India. This high-carbon variant of 316 is crafted for remarkable strength, creep resistance, and stability even in high-temperature environments. Our welded pipes, made in accordance with ASTM A312 and ASME SA312 standards, boast impressive corrosion resistance, particularly in challenging conditions like chloride-rich, acidic, and marine settings. Rithav Pipes and Tubes provides these durable Stainless Steel 316H welded pipes for essential applications in petrochemical plants, refineries, chemical processing, power generation, and the food industry, ensuring reliable performance and solid weld integrity under tough conditions.
Stainless Steel 316H Welded Pipes are composed of about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with a higher carbon content (0.04–0.10%) that boosts high-temperature strength. They typically exhibit a tensile strength ranging from 515–690 MPa and a yield strength of around 205 MPa. This alloy excels in creep and stress rupture resistance at temperatures above 500 °C, along with outstanding pitting and crevice corrosion resistance in chloride-laden environments. The austenitic microstructure of 316H guarantees excellent toughness, weldability, and stability, even after extended exposure to high temperatures, making it perfect for demanding process and structural piping systems.
Welded Tubes Size : 1 / 8″ NB – 24″ NB
Specifications : ASTM A/ASME SA213, A249, A269, A312, A358
Standard : ASTM, ASME and API
Length : Single Random, Double Random & Required Length
Outer Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
Thickness : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Welded

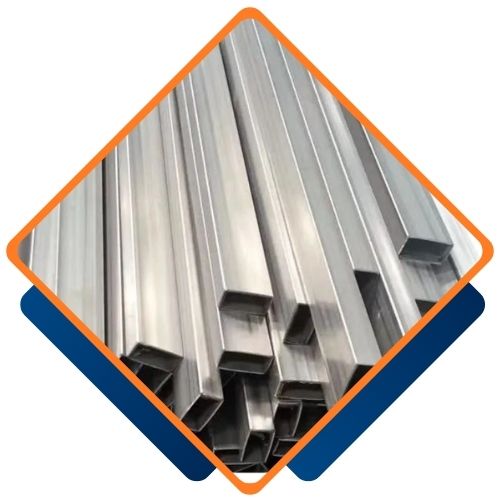

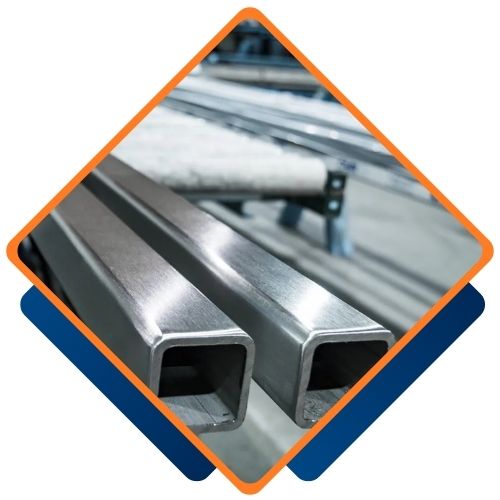

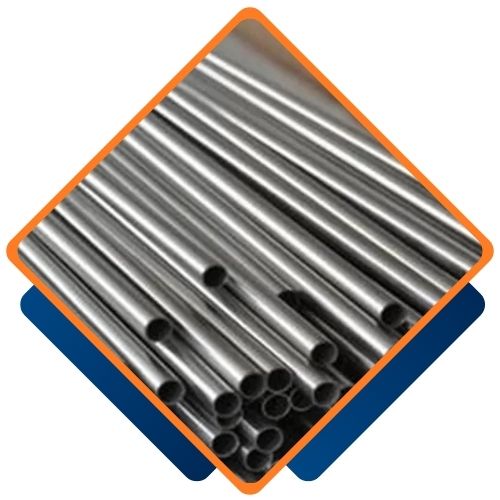

Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
UNS | C Carbon | Mn | P | S | Si | Cr | Ni Nickel | Mo Molybdenum |
S31600 | 0.080 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
S31603 | 0.030 max | 2.00 max | 0.045 max | 0.030 max | 1.00 max | 16.0–18.0 | 10.0–18.0 | 2.00–3.00 |
Yield Strength: | 30 ksi min |
Tensile Strength: | 75 ksi min |
Elongation (min 2″): | 35% |
Hardness (Rockwell B Scale): | 90 HRB max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 316 and 316L Welded Tubing from Rithav Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Rithav Pipes and Tubes is the largest supplier of Stainless Steel 316 and 316L Welded Tubing in Delhi, India. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Yes, Rithav Pipes and Tubes offer large custom designs for Stainless Steel 316 and 316L Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@rithavpipesandtubes.co.in.
Stainless Steel 316 and 316L Welded Tubing is widely used in industries requiring superior corrosion resistance, especially in marine, chemical, and pharmaceutical applications. It is ideal for use in heat exchangers, condensers, chemical processing equipment, and marine environments. Due to its resistance to pitting and crevice corrosion. The tubing is also used in food processing, medical devices, and water treatment systems. Its low carbon content in SS 316L ensures excellent weldability and prevents carbide precipitation making it suitable for high-pressure and high-temperature environments while maintaining durability and performance.
