Home > Stainless Steel >Stainless Steel 316Ti EFW Pipes
Rithav Pipes and Tubes stands out as a top manufacturer and supplier of Stainless Steel 316H Welded Pipes, proudly based in Delhi, India. This high-carbon variant of 316 is crafted for remarkable strength, creep resistance, and stability even in high-temperature environments. Our welded pipes, made in accordance with ASTM A312 and ASME SA312 standards, boast impressive corrosion resistance, particularly in challenging conditions like chloride-rich, acidic, and marine settings. Rithav Pipes and Tubes provides these durable Stainless Steel 316H welded pipes for essential applications in petrochemical plants, refineries, chemical processing, power generation, and the food industry, ensuring reliable performance and solid weld integrity under tough conditions.

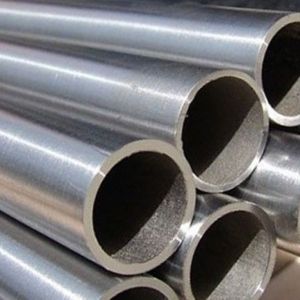

Stainless Steel 316Ti EFW Pipes are made up of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and 0.5% titanium, which helps stabilize against carbide precipitation. This composition significantly boosts corrosion resistance in high-temperature and aggressive settings. The mechanical properties include a minimum tensile strength of 515 MPa, yield strength of at least 205 MPa, and an elongation of at least 35%. These pipes maintain their mechanical stability even at temperatures up to 870°C, making them perfect for continuous high-temperature applications. The electric fusion welding process guarantees strong, reliable seams, making them suitable for large-diameter, high-pressure uses.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 316Ti | S31635 | 1.4571 | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 | SUS 316Ti | 320S31 | 08Ch17N13M2 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 75 | 205 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316Ti EFW Pipes from Rithav Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density(kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100 °C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100 °C | 0-315 °C | 0-538 °C | At 100 °C | At 500 °C | |||||
| 316Ti | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
We offer custom sizes for Stainless Steel 316Ti EFW Pipes to meet your specific needs. Our dedicated team at Rithav Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@rithavpipesandtubes.co.in.
Stainless Steel 316Ti EFW Pipes find extensive applications in the chemical and petrochemical sectors, heat exchangers, refineries, marine environments, and power plants, particularly in acidic or chloride-rich settings. Their titanium stabilization ensures outstanding performance in welded structures, effectively preventing intergranular corrosion post-welding. These pipes are also utilized in paper and pulp mills, food processing equipment, pharmaceutical facilities, and aerospace systems that require high-purity and corrosion-resistant piping. 316Ti EFW pipes are especially well-suited for large-diameter process piping.
