Home > Stainless Steel > Stainless Steel 317 and 317L Welded Tubing
Based in Delhi, India, Brydon Pipes & Tubes is a reliable manufacturer and supplier of high-quality Stainless Steel 317/317L Welded Tubing. Renowned for excellent corrosion resistance and mechanical properties, our tubing is best suited to application in chemical processing, petrochemical, pharmaceutical, and food sectors. Fabricated with state-of-the-art technology, our welded tubing provides superior weld integrity, dimensional accuracy, and long-term performance even under harsh environments. With an emphasis on quality, prompt delivery, and customer satisfaction, Brydon Pipes & Tubes is the first choice for companies in search of high-performance stainless steel solutions for highly critical industrial use.
Stainless Steel 317/317L Welded Tubing is an austenitic stainless steel alloy containing 18–20% chromium, 13–15% nickel, and 3–4% molybdenum, which provides excellent resistance to pitting, crevice corrosion, and acidic environments. The 317L type contains less carbon content, with improved weldability and intergranular corrosion resistance. The alloy offers tensile strength of 515 MPa and yield strength of 205 MPa, with high formability, durability, and resistance to high temperatures. The alloy is best suited for high-performance applications in environments with corrosive and chloride-rich environments.
Welded Pipes & Tubes Size : 1 / 8″ NB – 24″ NB
Specifications : ASTM A/ASME SA213, A249, A269, A312, A358
Standard : ASTM, ASME and API
Length : Single Random, Double Random & Required Length
Outer Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
Thickness : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Welded

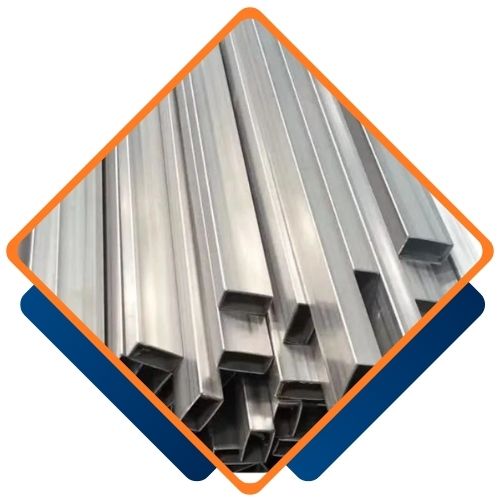

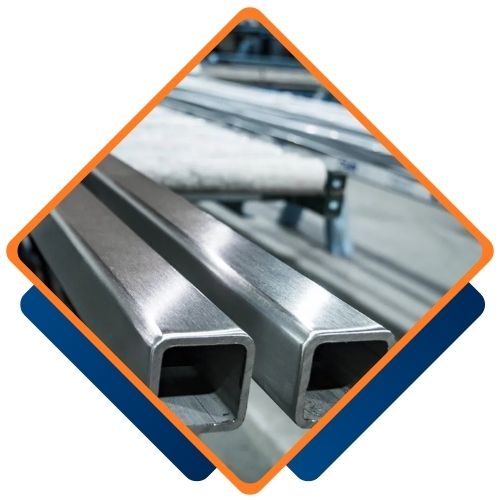

Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 317 and 317L Welded Tubing from Rithav Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Rithav Pipes and Tubes is the largest supplier of Stainless Steel 317 and 317L Welded Tubing in Delhi, India. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Yes, Rithav Pipes and Tubes offer large custom designs for Stainless Steel 317 and 317L Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@rithavpipesandtubes.co.in.
Stainless Steel 317/317L Welded Tubing is extensively used for high corrosion resistance and mechanical strength applications. It is particularly applicable to chemical processing plants, petrochemical plants, pharmaceutical equipment, and the food and beverage sector, where contact with aggressive chemicals and chlorides is frequent. Its pitting, crevice corrosion, and acidic media resistance capability makes it perfect for heat exchangers, pressure vessels, and boilers at high temperatures. Also, its high weldability and formability provide ease of fabrication in structural and industrial purposes, with surefire performance and durability even under the most stringent conditions.
