Home > Stainless Steel >Stainless Steel 321 and 321H EFW Pipes

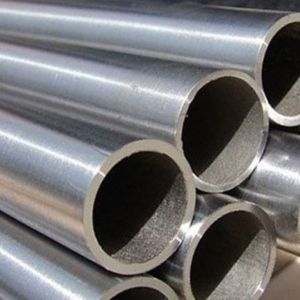

Rithav Pipes and Tubes, Delhi, India-based, is a reliable manufacturer and supplier of high-quality Stainless Steel 321 and 321H EFW Pipes. Acclaimed for their superior heat resistance, mechanical properties, and resilience, these pipes are best suited for challenging conditions in petrochemical, aerospace, and power generation sectors. Committed to supplying certified, high-performance piping solutions, Rithav ensures every product exceeds strict technical and industry requirements. Our reliability, efficiency, and customer satisfaction-centric approach make us the first choice for applications needing consistent performance under high-temperature as well as corrosive environments.
321 and 321H EFW Pipes are generally made up of 17–19% chromium, 9–12% nickel, and titanium as a stabilizing agent. The prime difference is the greater percentage of carbon present in 321H (0.04–0.10%), which offers higher strength in higher temperatures. These pipes show very good tensile strength (~515 MPa) and yield strength (~205 MPa) and high resistance to oxidation, stress corrosion cracking, and intergranular corrosion. Their better weldability, mechanical stability, and thermal resistance make them ideal for high-temperature and high-pressure applications.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS |
| SS 321 | S32100 | 1.4541 | X6CrNiTi18-10 | SUS 321 |
| SS 321H | S32109 | 1.4878 | X12CrNiTi18-9 | SUS 321H |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 321 and 321H EFW Pipes from Rithav Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
We offer custom sizes for Stainless Steel 321 and 321H EFW Pipes to meet your specific needs. Our dedicated team at Rithav Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@rithavpipesandtubes.co.in.
Stainless Steel 321 and 321H EFW Pipes are extensively used in high-temperature resistance and long-term stability environments. Typical uses are in aircraft exhaust systems, furnace components, thermal oxidizers, and boiler parts. In chemical and petrochemical processing, they find application in heat exchangers, reactors, and process piping. The 321H has a high carbon content that makes it ideal for superheaters, pressure vessels, and high-stress steam applications. Their superior performance under thermal cycling, along with their good corrosion resistance, makes them perfect for those industries that have to handle continuous exposure to high temperatures and corrosive factors.
