Home > Stainless Steel >Stainless Steel 904L EFW Pipes

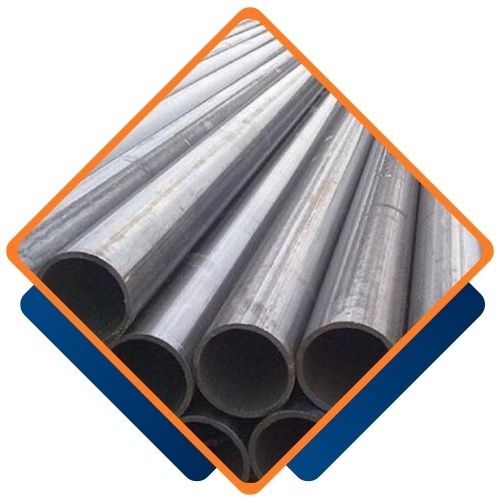

Rithav Pipes and Tubes is a reputable manufacturer and supplier of Stainless Steel 904L EFW Pipes, proudly based in Delhi, India. We focus on delivering top-notch Electric Fusion Welded (EFW) pipes crafted from SS 904L, a super austenitic stainless steel celebrated for its outstanding resistance to corrosion, particularly in tough chemical settings. Our 904L EFW pipes are produced using cutting-edge welding techniques and high-quality materials, ensuring remarkable strength, consistency, and durability. These pipes find extensive applications in various industries, including chemical processing, marine, and pharmaceuticals. At Rithav Pipes and Tubes, we are dedicated to providing premium piping solutions characterized by reliability, precision, and timely delivery throughout India.
Stainless Steel 904L EFW Pipes consist of 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and 1–2% copper. This unique chemical makeup boosts their resistance to strong reducing acids like sulfuric acid and offers excellent protection against pitting and crevice corrosion. These pipes showcase impressive tensile strength (490–710 MPa), yield strength (220–280 MPa), along with good ductility and weldability. The EFW manufacturing process enables the production of large-diameter pipes with uniform wall thickness, making them perfect for low to moderate pressure applications where high corrosion resistance is essential. SS 904L also stands strong against stress corrosion cracking and scaling at elevated temperatures.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | KS |
| SS 904L | N08904 | 1.4539 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 | SUS 904L | 904S13 | STS 317J5L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 904L EFW Pipes from Rithav Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Specific Heat (0-100°C) | 450 | J.kg-1.°K-1 |
| Thermal Conductivity | 11.5 | W.m -1.°K-1 |
| Thermal Expansion | 15.8 | mm/m/°C |
| Modulus Elasticity | 190 | GPa |
| Electrical Resistivity | 9.52 | μohm/cm |
| Density | 7.95 | g/cm3 |
We offer custom sizes for Stainless Steel 904L EFW Pipe to meet your specific needs. Our dedicated team at Rithav Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@rithavpipesandtubes.co.in.
Stainless Steel 904L EFW Pipes are utilized across a variety of industries that require exceptional corrosion resistance and long-lasting reliability. They are especially well-suited for chemical and petrochemical plants, where they transport aggressive chemicals and acids. In the marine sector, they play a crucial role in seawater cooling and ballast systems. These pipes are also commonly found in pulp and paper industries, gas scrubbers, heat exchangers, and pharmaceutical processing systems. Thanks to their excellent weldability, formability, and resilience in harsh environments, SS 904L EFW pipes are the go-to choice for critical applications.
