Home > Stainless Steel > Stainless Steel Condenser Tubing
Rithav Pipes and Tubes, located in Delhi, India, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel Condenser Tubing, specifically designed for optimal heat transfer in essential thermal systems. Renowned for their precision, durability, and outstanding corrosion resistance, Rithav’s condenser tubes are crafted to comply with international standards like ASTM, ASME, and EN. Utilizing cutting-edge technology and rigorously tested raw materials, these tubes guarantee excellent thermal conductivity and mechanical strength. Catering to a diverse array of industries, including power generation, chemical processing, and HVAC, Rithav Pipes and Tubes is celebrated for providing performance-oriented and cost-effective tubing solutions.
Stainless Steel Condenser Tubing is generally produced using grades such as 304, 316, or 316L, which consist of chromium (18–20%), nickel (8–14%), and molybdenum (2–3%) in some variants. This composition offers remarkable resistance to corrosion, oxidation, and scaling. The mechanical properties include a tensile strength ranging from 500–750 MPa, yield strength between 200–450 MPa, and elongation of 30–40%. The Brinell hardness falls between 150–200 HB. These features make stainless steel condenser tubes dependable for high-pressure and temperature cycles, ensuring long-lasting performance and safety in challenging environments.
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |

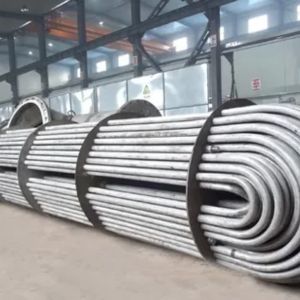

| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |

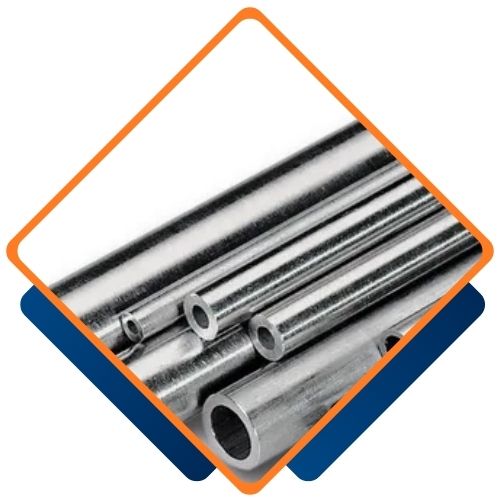

| Form | Seamless, Welded, Hot Rolled, Cold Drawn |

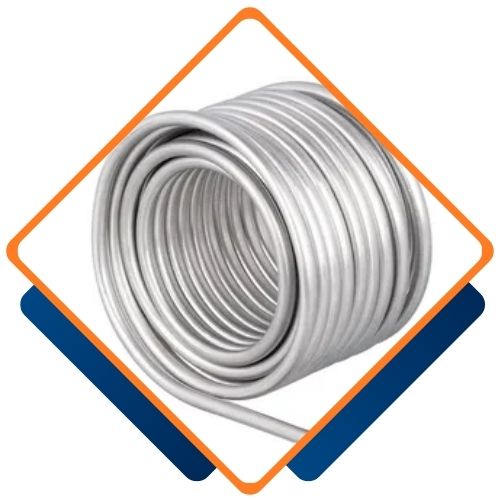

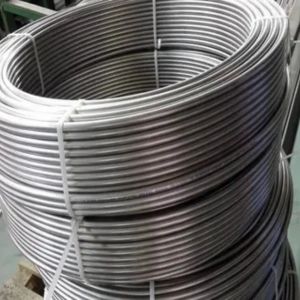

| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP – 304,304L,316,316L,201 |
| STAINLESS STEEL Condenser TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Condenser Tubing from Rithav Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Rithav Pipes and Tubes, one of the largest suppliers of Stainless Steel Condenser Tubing in Delhi, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| 12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
| 15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
| 19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
| 25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
| 38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Yes, we offer custom sizes for Stainless Steel Condenser Tubing to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.

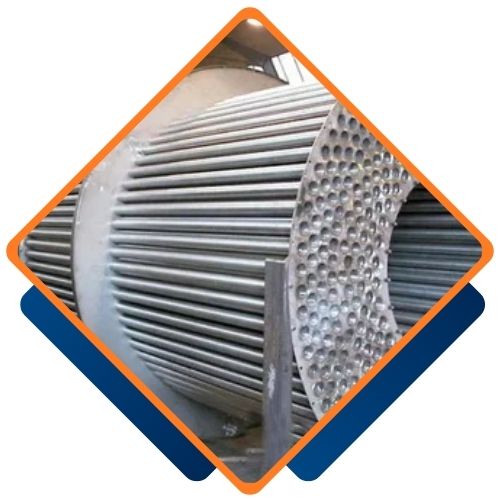

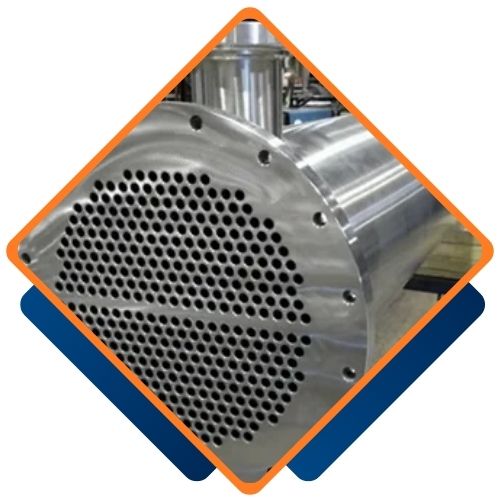

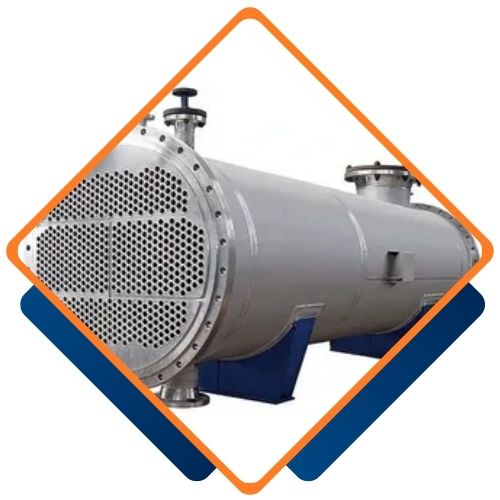

Stainless Steel Condenser Tubing finds extensive use in power plants, refineries, petrochemical facilities, marine systems, and HVAC setups where efficient heat exchange and corrosion resistance are paramount. These tubes are frequently utilized in steam condensers, refrigeration units, evaporators, heat exchangers, and desalination systems. Their capacity to endure high pressure, thermal cycling, and corrosive fluids makes them perfect for critical thermal and process applications. Moreover, their smooth internal surface minimizes friction loss and fouling. The durability and low maintenance requirements further enhance their appeal in demanding environments.
