Home > Stainless Steel > Stainless Steel ERW Pipes

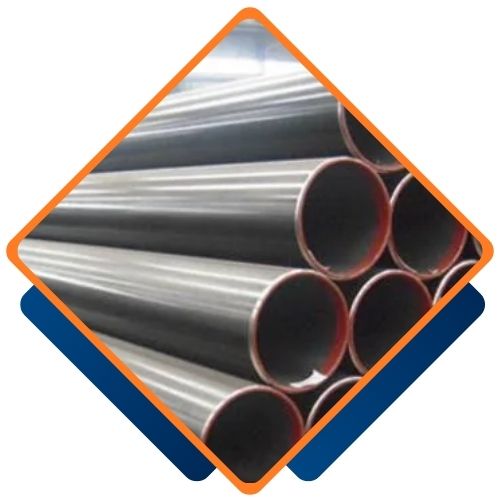

Rithav Pipes and Tubes stands out as a top-notch manufacturer and supplier of Stainless Steel ERW Pipes, proudly based in Delhi, India. We focus on delivering high-quality Electric Resistance Welded (ERW) pipes crafted from premium stainless steel, designed to cater to a variety of industrial and structural needs. Our ERW pipes are celebrated for their consistent wall thickness, superb surface finish, and impressive strength. Produced with cutting-edge technology and rigorous quality control, they find extensive use in sectors like construction, water supply, oil & gas, and automotive. At Rithav Pipes and Tubes, we are dedicated to providing reliable, durable, and cost-effective piping solutions throughout India.
Stainless Steel ERW Pipes are created from flat-rolled stainless steel strips, which are welded longitudinally using electric resistance. Common grades include SS 202, SS 304, and SS 316, containing 10.5% or more chromium along with nickel and molybdenum to enhance corrosion resistance and strength. These pipes boast a tensile strength ranging from 500 to 750 MPa and a yield strength of 200 to 300 MPa. They offer excellent weldability, good dimensional accuracy, and a smooth finish both inside and out. Ideal for medium- to low-pressure applications, SS ERW pipes are a budget-friendly option for a wide array of commercial and industrial uses.
| Standard Specification | ASTM A312, A270, A249, A269, A268, A358, A213 |
| ANSI / ASME Specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |

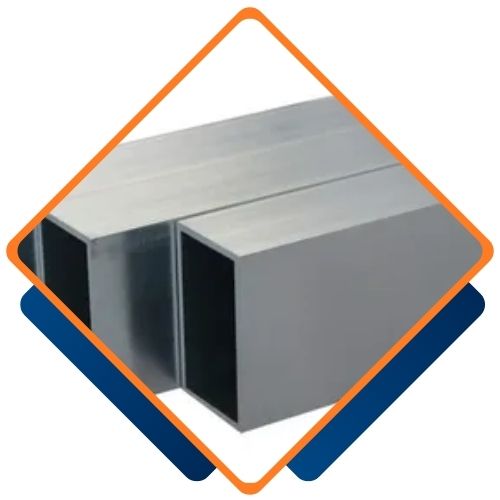

| Shapes and Types we produce | Hex, Hydraulic, Square, Round, Honed, Rectangle |
| Manufacturing Type | Fabricated, 100% X Ray Welded, ERW (Electric Resistance Welded), CDW, Welded |
| Pipe End Forming | Plain One End, Beveled One End, Bevel large end, Bevel one end, Bevel both ends, Beveled end, Bevel small end, Plain Both Ends, Treaded Both Ends, Treaded On End |
| Various TDC Types | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Material Surface Finish | 2B, No.4, No.1, No.8 Mirror Finish or custom Finish as per customer Requirements |
| ASME B36.10 Pipe Schedules | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Available Value Added Services | Color Coding, Cutting, Threading, Grooving, Export Documentation, MTR’s Available, Polishing, Material testing, Beveling, Destructive, Threading, Export Packaging, Destructive, Machining, Non Customer Tagging/ Marking, Ultrasonic Testing |
| Marking |
|
| Grades |
|
| Grade | Elastic Modulus (GPa) | Electrical Resistivity (nΩ.m) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Density (kg/m3) | Specific Heat 0-100°C (J/kg.K) | Thermal Conductivity (W/m.K) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| SS ERW Pipe | 193 | 720 | 17.2 | 17.8 | 18.4 | 8000 | 500 | 16.2 | 21.5 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel ERW Pipes from Rithav Pipes and Tubes ensures high-quality, corrosion-resistant pipes with excellent durability and strength. We provide reliable performance in demanding environments, and our electric resistance Welded (ERW) process guarantees superior precision and consistency in manufacturing.
Rithav Pipes and Tubes, one of the largest suppliers of Stainless Steel ERW Pipes in Delhi, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Nominal size in Inch | Wall thickness in Inch | Outside diameter in mm | Wall thickness in mm | Outside diameter in Inch | Weight [Kg/M] | Weight [lb/ft] |
|---|---|---|---|---|---|---|
| 1/2 Inch | 0.065 | 21.3 mm | 1.65 | 0.840 | 0.80 | 0.54 |
| 3/4 Inch | 0.065 | 26.7 mm | 1.65 | 1.050 | 1.03 | 0.69 |
| 1 Inch | 0.065 | 33.4 mm | 1.65 | 1.315 | 1.30 | 0.87 |
| 1 1/4 Inch | 0.065 | 42.2 mm | 1.65 | 1.660 | 1.66 | 1.12 |
| 1 1/2 Inch | 0.065 | 48.3 mm | 1.65 | 1.900 | 1.91 | 1.28 |
| 2 Inch | 0.065 | 60.3 mm | 1.65 | 2.375 | 2.40 | 1.61 |
| 2 1/2 Inch | 0.083 | 73.0 mm | 2.11 | 2.875 | 3.71 | 2.49 |
| 3 Inch | 0.083 | 88.9 mm | 2.11 | 3.500 | 4.54 | 3.05 |
| 3 1/2 Inch | 0.083 | 101.6 mm | 2.11 | 4.000 | 5.21 | 3.50 |
| 4 Inch | 0.083 | 114.3 mm | 2.11 | 4.500 | 5.88 | 3.95 |
| 5 Inch | 0.109 | 141.3 mm | 2.77 | 5.563 | 9.52 | 6.40 |
| 6 Inch | 0.109 | 168.3 mm | 2.77 | 6.625 | 11.38 | 7.65 |
| 8 Inch | 0.109 | 219.1 mm | 2.77 | 8.625 | 14.87 | 9.99 |
| 10 Inch | 0.134 | 273.1 mm | 3.4 | 10.750 | 22.76 | 15.29 |
| 12 Inch | 0.156 | 323.9 mm | 3.96 | 12.750 | 31.44 | 21.13 |
| 14 Inch | 0.156 | 355.6 mm | 3.96 | 14.000 | 34.56 | 23.22 |
| 16 Inch | 0.165 | 406.4 mm | 4.19 | 16.000 | 41.83 | 28.11 |
| 18 Inch | 0.165 | 457.0 mm | 4.19 | 18.000 | 47.09 | 31.64 |
| 20 Inch | 0.188 | 508.0 mm | 4.78 | 20.000 | 59.70 | 40.12 |
| 22 Inch | 0.188 | 559.0 mm | 4.78 | 22.000 | 65.75 | 44.18 |
| 24 Inch | 0.218 | 610.0 mm | 5.54 | 24.000 | 83.11 | 55.85 |
| 30 Inch | 0.250 | 762.0 mm | 6.35 | 30.000 | 119.09 | 80.02 |
Yes, we offer custom sizes for Stainless Steel ERW Pipes to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
Across various industries, Stainless Steel ERW Pipes are highly valued for their strength, corrosion resistance, and cost-effectiveness. In construction, they serve as structural support, handrails, and scaffolding. The water supply and plumbing sectors depend on them for pipeline systems, thanks to their leak-proof welds and long-lasting performance. In the automotive and transport industries, they are utilized for exhaust systems and body structures. Moreover, they play a crucial role in the oil & gas, chemical, and food processing sectors. With their reliability, durability, and ease of fabrication, SS ERW pipes are a versatile choice for numerous engineering and infrastructure applications.
