Home > Super Duplex Steel > Super Duplex Steel Pipes S32750

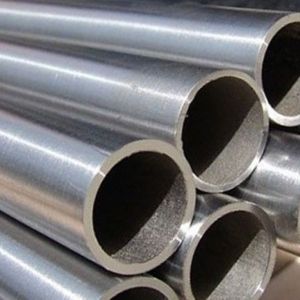

Rithav Pipes and Tubes is a leading manufacturer and supplier of Super Duplex Steel S32750 pipes, located in Delhi, India. Renowned for providing high-quality and high-performance piping solutions, Rithav serves industries that demand extra strength and corrosion resistance. Our Super Duplex Steel S32750 pipes are designed using cutting-edge technology and undergo rigorous quality inspections to ensure global standards. With an extensive distribution channel and customer-focused strategy, we offer dependable solutions for mission-critical environments like offshore, chemical processing, and marine industries, establishing us as a reliable name throughout India and global markets.
Super Duplex Steel S32750 is a highly alloyed stainless steel with around 25% chromium, 7% nickel, 4% molybdenum, and nitrogen and manganese additions. It provides outstanding mechanical properties of tensile strength approximately 795 MPa, yield strength 550 MPa, and acceptable elongation. The grade is a combination of high strength with excellent resistance to pitting, crevice corrosion, and stress corrosion cracking in harsh environments. Its dual-phase microstructure provides toughness and durability and is suitable for cryogenic as well as elevated temperature applications.
| Specification | ASTM A 789 ASME SA 789 |
| Standard Specification | ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Size |
|
| Welded Pipes Size |
|
| EFW Pipes Size |
|
| Wall Thickness | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| manufacturing techniques | Seamless / ERW / EFW/ Welded / Fabricated / CDW/ LSAW/ Seam-Welded / Redrawn |
| Origin | Indian, European, Korean, Japanese |
| Form | Round, Square, Rectangular |
| Delivery Condition | Annealed and Pickled, Hot Finished, Polished, Bright Annealed, Cold Drawn |
| Grade | Super Duplex 2507 |
|---|---|
| Carbon | 0.030 |
| Manganese | 1.20 |
| Phosphorous | 0.035 |
| Sulphur | 0.020 |
| Silicon | 0.80 |
| Chromium | 24.0–26.0 |
| Nickel | 6.0–8.0 |
| Molybdenum | 3.0–5.0 |
| Nitrogen | 0.24–0.32 |
| Iron | Bal. |
| Copper | 0.50 |
| Alloy | UNS Designation | Spec. | psi | MPa | ksi | psi | MPa | ksi | Elongation in 2 in. (min.) % | Grain Size Req. | Max. Hardness | Modulus of Elasticity (x106psi) | Mean Coefficient of Thermal Expansion (IN./IN./°F x 10-6) | Thermal Conductivity (BTU-in/ ft2-h-°F) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2507 | S32750 | A789, A790 | 116,000 | 800 | 116 | 80,000 | 550 | 80 | 15 | – | 32 Rc | 27.5 | 7.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Pipes S32750 from Rithav Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Rithav Pipes and Tubes, one of the largest suppliers of Duplex Steel Pipes S32750 in Delhi, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Duplex Steel Pipes S32750 to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
| Alloy | UNS Designation | Werkstoff NR. | Specifications | AFNOR | Grade | DIN | EN | SS |
|---|---|---|---|---|---|---|---|---|
| 2507 | S32750 | 1.4410 | A/SA789, A/SA790 | Z3 CN 25.06 Az | F53 | X 2 Cr Ni MoN 25.7.4 | 1.4410 | 2328 |
Super Duplex Steel S32750 pipes find extensive application in industries demanding higher strength and resistance to corrosion. These are used in offshore oil and gas platforms, desalination plants, chemical processing, heat exchangers, and pressure vessels. They are found to be particularly suited to aggressive media and hostile marine environments and are used for subsea piping, structural items, and high-pressure systems. They are also used in pulp and paper mills, fire-fighting systems, and flue gas cleaning. Their superior mechanical properties and resistance to corrosion render them an economical and dependable option for rigorous engineering applications
| Pipe OD mm | Pipe WT mm | Nominal size | Weight, kg/m |
|---|---|---|---|
| 21.34 | 2.11 | 1/2″ 10S | 1.02 |
| 21.34 | 2.77 | 1/2″ 40S | 1.29 |
| 26.67 | 2.11 | 3/4″ 10S | 1.30 |
| 26.67 | 2.87 | 3/4″ 40S | 1.71 |
| 33.40 | 1.65 | 1″ 5S | 1.31 |
| 33.40 | 2.77 | 1″ 10S | 2.13 |
| 33.40 | 3.38 | 1″ 40S | 2.54 |
| 42.16 | 1.65 | 1 1/4″ 5S | 1.67 |
| 42.16 | 2.77 | 1 1/4″ 10S | 2.73 |
| 42.16 | 3.56 | 1 1/4″ 40s | 3.44 |
| 48.26 | 1.65 | 1 1/2″ 5S | 1.92 |
| 48.26 | 2.77 | 1 1/2″ 10S | 3.16 |
| 48.26 | 3.68 | 1 1/2″ 40S | 5.49 |
| 60.33 | 1.65 | 2″ 5S | 2.42 |
| 60.33 | 2.77 | 2″ 10S | 3.99 |
| 60.33 | 3.91 | 2″ 40S | 5.52 |
| 73 | 3.05 | 2 1/2″ 10s | 5.35 |
| 73 | 5.16 | 2 1/2″ 40S | 8.77 |
| 88.90 | 2.11 | 3″ 5S | 4.58 |
| 88.90 | 3.05 | 3″ 10S | 6.56 |
| 88.90 | 5.49 | 3″ 40S | 11.47 |
| 101.60 | 3.05 | 3 1/2″ 10s | 7.53 |
| 114.30 | 2.11 | 4″ 5S | 5.93 |
| 114.30 | 3.05 | 4″ 10S | 8.50 |
| 114.30 | 6.02 | 4″ 40S | 16.32 |
| 141.3 | 3.4 | 5″ 10S | 11.74 |
| 141.3 | 6.55 | 5″ 40S | 22.1 |
| 168.3 | 2.77 | 6″ 5S | 11.48 |
| 168.3 | 3.4 | 6″ 10S | 14.04 |
| 168.3 | 7.11 | 6″ 40S | 28.69 |
| 219.1 | 2.77 | 8″ 5S | 15.0 |
| 219.1 | 3.76 | 8″ 10S | 20.27 |
| 219.1 | 8.18 | 8″ 40S | 43.2 |
| 273 | 3.40 | 10″ 5S | 22.95 |
| 273 | 4.19 | 10″ 10S | 28.2 |
| 273 | 9.27 | 10″ 40S | 61.22 |
| 323.9 | 3.96 | 12″ 5S | 31.72 |
| 323.9 | 4.57 | 12″ 10S | 36.54 |
| 323.9 | 9.53 | 12″ 40S | 75.02 |
| 355.6 | 4.78 | 14″ 10S | 41.99 |
| 355.6 | 9.53 | 14″ STD | 82.583 |
| 406.4 | 9.53 | 16″ STD | 94.706 |
| 406.4 | 4.78 | 16″ 10S | 48.07 |
| 457.2 | 4.78 | 18″ 10S | 54.151 |
| 508.0 | 5.54 | 20″ 10S | 69.702 |
| 610.0 | 6.35 | *24″ 10S | 95.919 |
