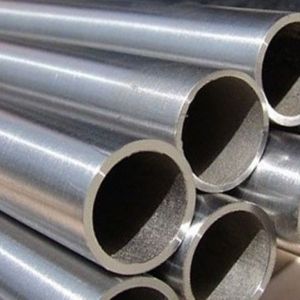

Rithav Pipes and Tubes is a leading producer and seller of high-quality Titanium Pipes, with offices in Delhi, India. Driven by a robust emphasis on precision, durability, and performance, we deliver titanium piping solutions to exacting global standards. Our Titanium Pipes are renowned for their outstanding strength-to-weight ratio, superior resistance to corrosion, and extensive service life, making them suitable for high-speed applications in many industries. At Rithav, we apply cutting-edge manufacturing methods and rigorous quality control procedures to provide dependable and effective piping solutions specific to aerospace, marine, chemical, medical, and industrial applications.
Titanium Pipes are produced from commercially pure titanium (Grades 1–4) or titanium alloys like Grade 5 (Ti-6Al-4V), which comprise 6% aluminum and 4% vanadium. These pipes have very good mechanical properties with tensile strength varying between 344 MPa and 895 MPa and yield strength varying between 275 MPa and 828 MPa. They also have elongation values ranging from 15% to 30%, having good ductility. The high strength-to-weight ratio, good corrosion resistance, and thermal stability of titanium make these pipes highly suitable for use in high-performance and corrosive environment applications.
| Titanium Pipe International Specification | ASTM B337 ASME SB337 / ASTM B861 ASME SB861 NACE MRO 175-94, VdTÜV 230/2 |
| Dimensional tolerances | DIN 17861 D3/T3 or closer |
| Standard Specification | ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| Titanium Seamless Pipe Size |
|
| Grade 2 Titanium Welded Pipe Size |
|
| Titanium Grade 5 EFW Pipe Size |
|
| Titanium Grade 2 Pipe WT | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |

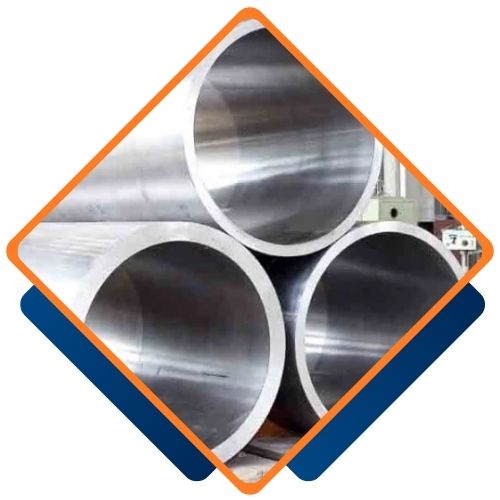

| Grade 5 Titanium Pipe manufacturing techniques | Seamless / ERW / EFW/ Welded / Fabricated / CDW/ LSAW/ Seam-Welded / Redrawn |
| Origin of ASTM B861 Titanium Alloy pipe material | Indian, European, Korean, Japanese |
| Titanium Metal Gr 5 Pipe End Types |
|
| Form | Round, Square, Rectangular |
| Ti Metal Gr 2 Pipe Length | Single Random, Double Random & Required Length End: Plain End, Beveled End, Treaded |
| Titanium Cp Grade 5 Pipe Delivery Condition | Annealed and Pickled, Hot Finished, Polished, Bright Annealed, Cold Drawn |
| Ti-6AL-4V ELI Titanium Pipe Packing |
|
| CP Titanium Pipe Value Added Services | Cut to size, thread, and groove |
| Port | Mumbai, India |
| Stocking distributor of leading Titanium Pipe manufacturers |
|
| CP Titanium Pipe Dimensional Specification | ANSI/ ASME B36.10, B36.19, B2.1 |
| Marking on Ti-6al-4v Titanium Pipe |
|
| Titanium Gr 2 | C | Ti | N | Fe | H | O | V | Al |
| 0.1 max | 99.2 min | 0.03 max | 0.3 max | 0.015 max | 0.25 max | – | – |
| Titanium Gr 5 | C | Ti | N | Fe | H | O | V | Al |
| 0.10 max | 90 min | 0.05 max | 0.40 max | 0.015 max | 0.20 max | 3.5-4.5 | 5.5-6.75 max |
| Titanium Alloy | UNS | Proof strength Rp0.2 MPa min | Tensile Stress Rm MPa min | Elongation A % min |
|---|---|---|---|---|
| Cp Ti Grade 1 | R50250 | 138-310 | 240 | 24 |
| Cp Ti Grade 2 | R50400 | 275-450 | 345 | 20 |
| Cp Ti Grade 3 | R50550 | 380-550 | 450 | 18 |
| Ti Grade 7 | R52400 | 275-450 | 345 | 20 |
| Ti Grade 9 | R56320 | 483 | 620 | 15 |
| Ti Grade 11 | R52250 | 138-310 | 240 | 24 |
| Ti Grade 12 | R53400 | 345 | 483 | 18 |
| Ti Grade 16 | R52402 | 275-450 | 345 | 20 |
| Ti Grade 17 | R52252 | 138-310 | 240 | 24 |
| Ti Grade 26 | R52404 | 275-450 | 345 | 20 |
| Ti Grade 28 | R52254 | 483 | 620 | 15 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Pipes find broad application in high-performance industries demanding materials with outstanding corrosion resistance and strength. In the aerospace industry, they find application in hydraulic systems, airframes, and exhaust ducting. They are used to process aggressive chemicals and high-pressure fluids in the chemical and petrochemical industries. The marine industry applies them in seawater piping, desalination plants, and offshore structures because of their resistance to seawater corrosion. Medical uses encompass surgical devices and implants for their biocompatibility. Power generation and nuclear power plants also depend on titanium pipes for heat exchangers and essential fluid transportation systems because of their long life and efficiency.
Rithav Pipes and Tubes, one of the largest suppliers of Titanium Pipes in Delhi, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Titanium Pipes to meet your specific requirements. Our team at Rithav Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@rithavpipesandtubes.co.in.
Titanium pipes are widely used in industries where strength, corrosion resistance, and durability are critical. In aerospace, they are used for hydraulic systems, fuel lines, and structural components due to their lightweight nature. In marine applications, titanium pipes resist seawater corrosion, making them ideal for shipbuilding and offshore platforms. The chemical processing industry uses them for transporting corrosive fluids, while in the power generation sector, they are essential for heat exchangers and condensers. Additionally, titanium pipes are used in medical devices and implants due to their biocompatibility.
